Automated temperature control (target temperature sensor, door/window, heat-once)

Tags: #<Tag:0x00007fc40b620508> #<Tag:0x00007fc40b6203f0> #<Tag:0x00007fc40b6202d8>

Note: The blueprint was developed for my own case. You can use it as a draft for adaption to your own case.

The automation switches the climate on, if the temperature in room below T_goal-T_delta, and switches the climate off, if the temperature above the goal temperaute T_goal.
Additionaly the climate is switched on/off by the door/window sensor (defined as a group).
Furthermore there is a “input_boolean.flag” to heat the room once and reset to a T_min temperature after the temperature is reached (use it, if you want asleep in a warm room, but don’t need this temperature whole night).
Unfortunately, since it is not possible to use template_trigger in blueprints an the moment, you need additional binary_sensors defined outside of the blueprint, for the case T_curr > T_goal (current temperature above goal temperature), and T < T_goal - T_delta (current temperature is to low).

      room_above_goal_t:
        friendly_name: "room: T > T_goal"
        value_template: >-
          {{ states('sensor.room_t') | float > state_attr('climate.room_thermostat', 'temperature') |float }}
      room_below_goal_t:
        friendly_name: "room: T < T_goal-dT"
        value_template: >-
          {{ states('sensor.room_t') | float < (state_attr('climate.room_thermostat', 'temperature') |float - states('input_number.t_delta') | float) }}

Also you need a input_boolean for manually on/off the climate.
In my case I switch this flag if nobody is at home (off) or just arrived (on), as well as in this automation by “door/window” group.

All what you have to do, if it’s running, is to set your T_goal temperature manually at thermostat itself or with an automation. I set 4-5 different temperatures during the day by automations.

There is a deactived debbuger within automation notify.debugger_file. Delete it, if you get problems with the debbuger, or replace by your own notification.

The “auto”-state will be overwritten by “heat” state.

Here some pictures and graphs from UI.
Climate - control:

And graph of the controlled temperate (red = T_goal, green = T_curr, blue = T_goal - T_delta, white = on/off state of climate)

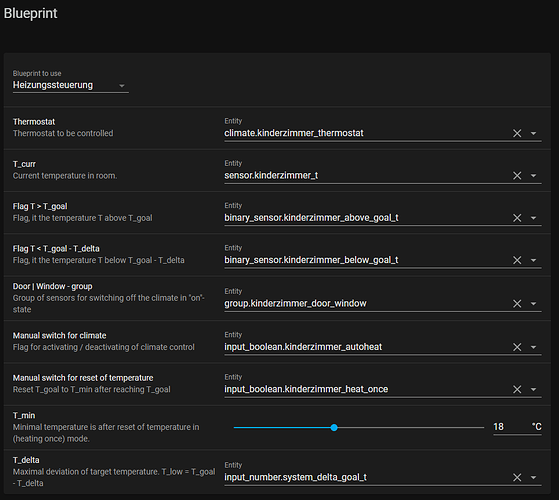

Here the screenshot of the automatisation:

Here is the blueprint itself:

blueprint:
  name: Automatisation of heat controll
  domain: automation
  input:
    climate_target:
      name: Thermostat
      description: Thermostat to be controlled
      selector:
        entity:
          domain: climate
    t_current_target:
      name: T_curr
      description: Current temperature in room.
      selector:
        entity:
          domain: sensor
    climate_trigger_t_above:
      name: Flag T > T_goal
      description: Flag, it the temperature T above T_goal
      selector:
        entity:
          domain: binary_sensor
    climate_trigger_t_below:
      name: Flag T < T_goal - T_delta
      description: Flag, it the temperature T below T_goal - T_delta
      selector:
        entity:
          domain: binary_sensor
    open_close_target:
      name: Door | Window - group
      description: Group of sensors for switching off the climate in "on"-state
      selector:
        entity:
          domain: group
    climate_auto_control_target:
      name: Manual switch for climate
      description: Flag for activating / deactivating of climate control
      selector:
        entity:
          domain: input_boolean
    climate_reset_heating_control_target:
      name: Manual switch for reset of temperature
      description: Reset T_goal to T_min after reaching T_goal
      selector:
        entity:
          domain: input_boolean
    t_min_target:
      name: T_min
      description: Minimal temperature is after reset of temperature in (heating once) mode.
      default: 17
      selector:
        number:
          min: 10.0
          max: 30.0
          step: 0.5
          unit_of_measurement: °C
    t_delta_target:
      name: T_delta
      description: Maximal deviation of target temperature. T_low = T_goal - T_delta
      default: input_number.system_delta_goal_t
      selector:
        entity:
          domain: input_number
mode: restart

variables:
  climate_target: !input climate_target
  t_current_target: !input t_current_target
  open_close_target: !input open_close_target
  climate_auto_control_target: !input climate_auto_control_target
  climate_reset_heating_control_target: !input climate_reset_heating_control_target
  climate_trigger_t_above: !input climate_trigger_t_above
  climate_trigger_t_below: !input climate_trigger_t_below

  t_min_target: !input t_min_target
  t_delta_target: !input t_delta_target
  t_goal: "{{state_attr(climate_target, 'temperature') | float}}"
  t_current: "{{states[t_current_target].state | float}}"
  t_delta: "{{states[t_delta_target].state | float}}"

  debug_mode: 'off'

trigger:
  - platform: state
    entity_id: !input open_close_target
    for: 00:00:45
  - platform: state
    entity_id: !input climate_target
    to: auto
  - platform: state
    entity_id: !input climate_auto_control_target
  - platform: state
    entity_id: !input climate_trigger_t_above
    to: 'on'
    from: 'off'
  - platform: state
    entity_id: !input climate_trigger_t_below
    to: 'on'
    from: 'off'
  - platform: state
    entity_id: !input climate_target
    to: heat
    from: 'on'

condition: []

action:
  - choose:
    - conditions:
      - condition: template
        value_template: "{{ debug_mode  == 'on' }}"
      sequence:
      - service: notify.debugger_file
        data:
          message: |-
            ####
            Start of automation: {{now().strftime('%Y-%m-%d %H:%M:%S')}}
            from_state: {{ trigger.from_state.state }}
            to_state: {{ trigger.to_state.state }}
            entity_id: {{ trigger.from_state.entity_id }}
            climate_target: {{climate_target }}
            t_delta_target: {{t_delta_target }}
            t_current_target: {{t_current_target }}
            t_current: {{t_current }}
            open_close_target: {{open_close_target }}
            climate_auto_control_target: {{climate_auto_control_target }}
            climate_trigger_t_above: {{climate_trigger_t_above}}
            climate_trigger_t_below: {{climate_trigger_t_below}}
            t_min_target: {{t_min_target }}
            climate_reset_heating_control_target: {{climate_reset_heating_control_target }}
            t_goal: {{t_goal}}
            t_delta: {{t_delta + 1.0}}
            ####
    default: []
  - choose:
    - conditions:
      - condition: template
        value_template: '{{ trigger.from_state.entity_id  == open_close_target}}'
      sequence:
      - choose:
        - conditions:
          - condition: template
            value_template: "{{ debug_mode  == 'on' }}"
          sequence:
          - service: notify.debugger_file
            data:
              message: Called by door group
        default: []
      - choose:
        - conditions:
          - condition: state
            entity_id: !input open_close_target
            state: 'on'
          sequence:
          # door/window open -> check hold_temperature
          - choose:
            - conditions:
              - condition: state
                entity_id: !input climate_auto_control_target
                state: 'on'
              sequence:
              #  hold_temperature on -> turn off hold_temperature
              - service: input_boolean.turn_off
                data: {}
                entity_id: !input climate_auto_control_target
            default:
            # hold_temperature off -> check climate on
            - choose:
              - conditions:
                - condition: not
                  conditions:
                  - condition: state
                    entity_id: !input climate_target
                    state: 'off'
                sequence:
                #  climate on -> turn off
                - service: climate.turn_off
                  data: {}
                  entity_id: !input climate_target
              default: [] #climate already off -> continue
        default:
        # door/window closed -> check hold_temperature
        - choose:
          - conditions:
            - condition: state
              entity_id: !input climate_auto_control_target
              state: 'off'
            sequence:
            # hold_temperature off -> turn hold_temperature on
            - service: input_boolean.turn_on
              data: {}
              entity_id: !input climate_auto_control_target
          default: [] # hold_temperature on -> continue
    - conditions:
      - condition: template
        value_template: '{{ trigger.from_state.entity_id  == climate_auto_control_target}}'
      sequence:
      #  Called by hold_temperature
      - choose:
        - conditions:
          - condition: state
            entity_id: !input climate_auto_control_target
            state: 'off'
          sequence:
          #  hold_temperature on to off -> check climate on
          - choose:
            - conditions:
              - condition: not
                conditions:
                - condition: state
                  entity_id: !input climate_target
                  state: 'off'
              sequence:
              #  climate on -> turn off
              - service: climate.turn_off
                data: {}
                entity_id: !input climate_target
            default: [] #  climate off -> continue
        default:
        #  hold_temperature off to on -> check if t < goal
        - choose:
          - conditions:
            - condition: template
              value_template: '{{ t_current  < t_goal }}'
            sequence:
            #  t < goal is true -> check if heat on
            - choose:
              - conditions:
                - condition: state
                  entity_id: !input climate_target
                  state: 'off'
                sequence:
                #  climate off -> turn climate to heat mode
                - service: climate.set_hvac_mode
                  data:
                    hvac_mode: heat
                  entity_id: !input climate_target
              default: [] # climate already on -> continue
          default: [] # t < goal is false -> continue
    - conditions:
      - condition: or
        conditions:
        - condition: and
          conditions:
          - condition: template
            value_template: '{{ trigger.from_state.entity_id  == climate_target}}'
          - condition: template
            value_template: '{{ trigger.to_state.state  == trigger.from_state.state}}'
        - condition: and
          conditions:
          - condition: template
            value_template: '{{ trigger.from_state.entity_id  == t_current_target}}'
          - condition: template
            value_template: '{{ trigger.to_state.state  != trigger.from_state.state}}'
        - condition: and
          conditions:
          - condition: template
            value_template: '{{ trigger.from_state.entity_id  == climate_trigger_t_above}}'
          - condition: template
            value_template: '{{ trigger.to_state.state  != trigger.from_state.state}}'
        - condition: and
          conditions:
          - condition: template
            value_template: '{{ trigger.from_state.entity_id  == climate_trigger_t_below}}'
          - condition: template
            value_template: '{{ trigger.to_state.state  != trigger.from_state.state}}'
      sequence:
      # 'Called by climate temperature or sensor: check hold_temperature on'
      - choose:
        - conditions:
          - condition: or
            conditions:
            - condition: and
              conditions:
              - condition: template
                value_template: '{{ trigger.from_state.entity_id  == climate_target}}'
              - condition: template
                value_template: '{{ trigger.to_state.state  == trigger.from_state.state}}'
              - condition: template
                value_template: '{{ t_current  < t_goal }}'
            - condition: and
              conditions:
              - condition: template
                value_template: '{{ trigger.from_state.entity_id  != climate_target}}'
              - condition: template
                value_template: '{{ trigger.to_state.state  != trigger.from_state.state}}'
              - condition: template
                value_template: '{{ t_current  < t_goal - t_delta }}'
          sequence:
          #  T < goal - d for sensor or T < goal for climate is true -> check if heat on
          - choose:
            - conditions:
              - condition: state
                entity_id: !input climate_target
                state: 'off'
              sequence:
              #  climate off -> turn climate to heat
              - service: climate.set_hvac_mode
                data:
                  hvac_mode: heat
                entity_id: !input climate_target
            default: [] #  climate already on -> continue
        - conditions:
          - condition: template
            value_template: '{{ t_current > t_goal  }}'
          sequence:
          #  '"T > goal is true -> turn off climate,  check if heat-once"'
          - choose:
            - conditions:
              - condition: state
                entity_id: !input climate_reset_heating_control_target
                state: 'on'
              sequence:
              #  heat once is true -> set T_min, reset heat once
              - service: input_boolean.turn_off
                data: {}
                entity_id: !input climate_reset_heating_control_target
              - service: climate.set_temperature
                data:
                  temperature: '{{t_min_target }}'
                entity_id: !input climate_target
            default: [] #  heat once is off -> continue
          - service: climate.turn_off
            data: {}
            entity_id: !input climate_target
        default: [] #  Tgoal - d <= T <= Tgoal by sensor -> continue
    - conditions:
      - condition: and
        conditions:
        - condition: template
          value_template: '{{ trigger.from_state.entity_id  == climate_target}}'
        - condition: template
          value_template: '{{ trigger.to_state.state  != trigger.from_state.state}}'
      sequence:
      #  Called by climate state
      - choose:
        - conditions:
          - condition: state
            entity_id: !input climate_target
            state: auto
          sequence:
          #  '"climate auto -> auto to heat"'
          - service: climate.set_hvac_mode
            data:
              hvac_mode: heat
            entity_id: !input climate_target
        - conditions:
          - condition: state
            entity_id: !input climate_target
            state: heat
          sequence:
          #  climate to heat -> check if hold_temperature is on
          - choose:
            - conditions:
              - condition: state
                entity_id: !input climate_auto_control_target
                state: 'off'
              sequence:
              # 'by climate on to heat: hold_temperature off -> turn on'
              - service: input_boolean.turn_on
                data: {}
                entity_id: !input climate_auto_control_target
            default: [] #  'by climate on to heat: hold_temperature on -> continue'
        default: []  #  climate not auto and not to heat -> just continue
    default: []  #  Unknown trigger case
    #  '#### End of automation ####'
3 Likes

das sieht phantastisch aus and ist genau was ich benötige. leider lässt sich der blueprint nicht importieren:

“No valid blueprint found in the topic. Blueprint syntax blocks need to be marked as YAML or no syntax.”

thanks a lot

Same here… i get it also in other blueprints…

import doesnt work

Import is not working. I think you must remove the YAML above the other YAML for import to work.

I uploaded the @iwanttobeafriendofha 's code to my github for testing purpose and it’s importing fine. You may use the link, until it’s fixed.
https://raw.githubusercontent.com/mj1985/ha-blueprint/main/heating.yaml

I just verified this url works and the one linked to this page is still down
