Controlling a Fairland Pool Heatpump eliminating Tuya

rstcologne · October 21, 2024, 4:25pm

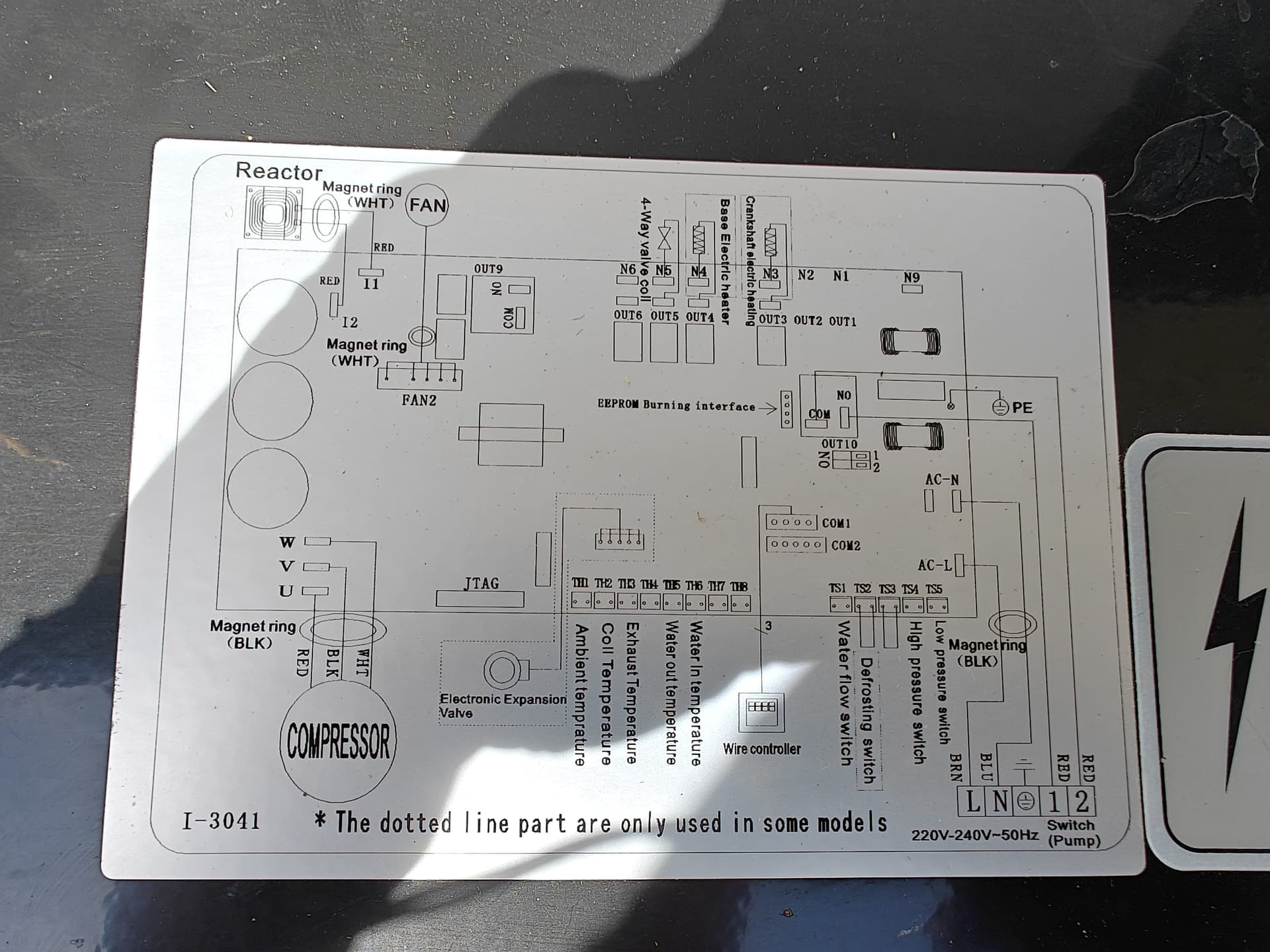

Here’s a picture. This is how I remember it. Maybe this is even more clear than my explanation.

peter_vk · January 7, 2025, 7:09am

@Elwell I’ve got a Madimack heater and trying to follow your steps. I hate to ask such a dumb question, but do you remember how you got the first lid off your heater? I’ve taken the 5 screws off near the base of the panel with the LCD, but seems like there’s more to it to remove…I’m a little hesitant to apply too much force…

Elwell · January 7, 2025, 8:33am

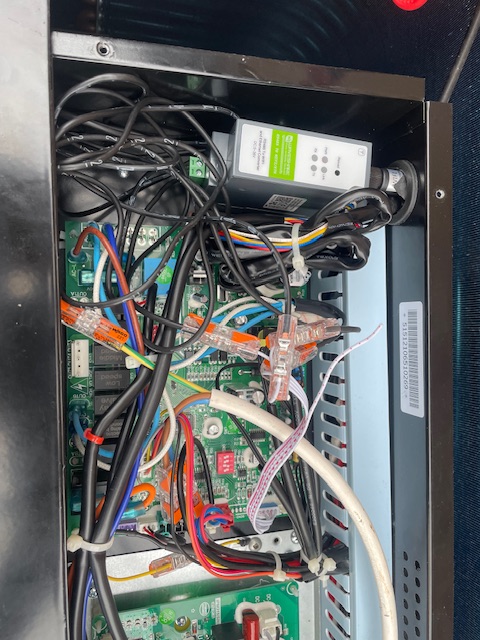

I’m pretty certain I just removed the top plastic cover (3 screws at back, one on each side) by removing the screws and pulling straight up. Once you’ve got that off, double check you’ve isolated the power and then each of the PCBs is in a metal box above the fan. On mine the main controller board (where the modbus connection goes) was in the largest box away from the power / water end, but I think I might have needed to unscrew one of the other lids too to get it off

(as you can see I’ve still not finished the new PCB and am still using the t-can485 board with a not terribly permanent enclosure)

peter_vk · January 11, 2025, 12:14am

Yup OK cool thanks, I’ll apply a bit more elbow grease then…

chatter1925 · January 16, 2025, 3:20pm

Hello, i am Alexander from Germany.
My English is not so good.

I have reached a Manufactur in China about more Information about the Inverter.

The Inverter on my Machine ist extra. An this Inverter driver are controlled over Modbus from the Main PCB.

My Machine is running and heating my House. I will controll the Inverterdriver directly over an ESP32. But i cant shutdown my Heatpump for Testing this.

Maybe someone else can test it on their heat pump.

I will share the Information for everyone. I load the Pdf up on this Link.

Download - UploadNow.io[PDF Registers Inverter Driver]

Best Regards
Alex

chatter1925 · January 16, 2025, 3:25pm

Hom · January 24, 2025, 6:36pm

Was für eine Pumpe hast du ? / What kind of pump do you have ?

stormjp · February 18, 2025, 3:52pm

I have finally built this, however I’m only able to switch on and off the PWP Power switch, change the temperature and change the PWP Operating mode and Power Mode.

All sensors just show ‘unknown’.

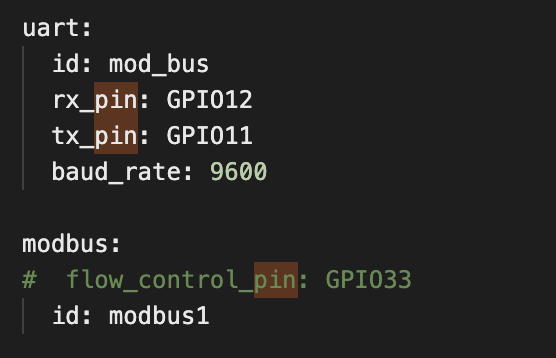

I’ve used a WEMOS S2 Mini, with pins 11 and 12 as RX/TX and pin 33 as the I2c SDA (pin D2 on the D1 Mini). Further I’ve changed the yaml file for RX/TX to GPIO11 and GPIO 12 and modbus to GPIO33.

Am I missing something?

Asino123 · February 19, 2025, 3:34pm

Good evening, everyone. I managed to integrate my Fairland heat pump using the Modbus connection. I’m using a gateway purchased on AliExpress that allows me to convert Modbus RTU to Modbus TCP. I adapted the reading code from the ESP32 directly to Home Assistant and created some automations to make the error dynamic. If anyone is interested in the code, I can share it. I got some help from ChatGPT using the dedicated “Home Assistant Assistant” plugin.

stormjp · February 20, 2025, 1:02pm

Okay, success! I decided to use a NoneMCU Esp8266 and connected D5 (GPIO14) to RXD on the RS485 and D6 (GPIO12) to TXD on RS485. I changed the yaml code accordingly - it would only accept GPIOxx and not Dx.

I’m over the moon! Now to shorten all the wires to make it fit into the 3D printed case and then we’re good to go.

Thank you very much @rstcologne

spdr870 · March 11, 2025, 8:00pm

Thanks to this topic and info from various other forums (Tweakers), I was able to connect my Fairland (IPHCR45) heatpump.

I described my approach in this github repo, hope it helps others. Most info is gathered from this topic and Tweakers, credits to all of you!
https://github.com/spdr870/fairland_iphcr45_modbus/blob/c1983e31d576ac014c8a9f0d9b6d1d3f2f213594/readme.md

The result:

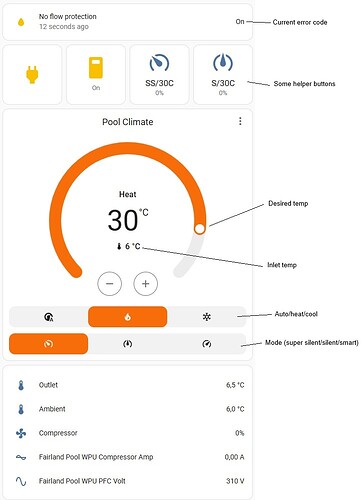

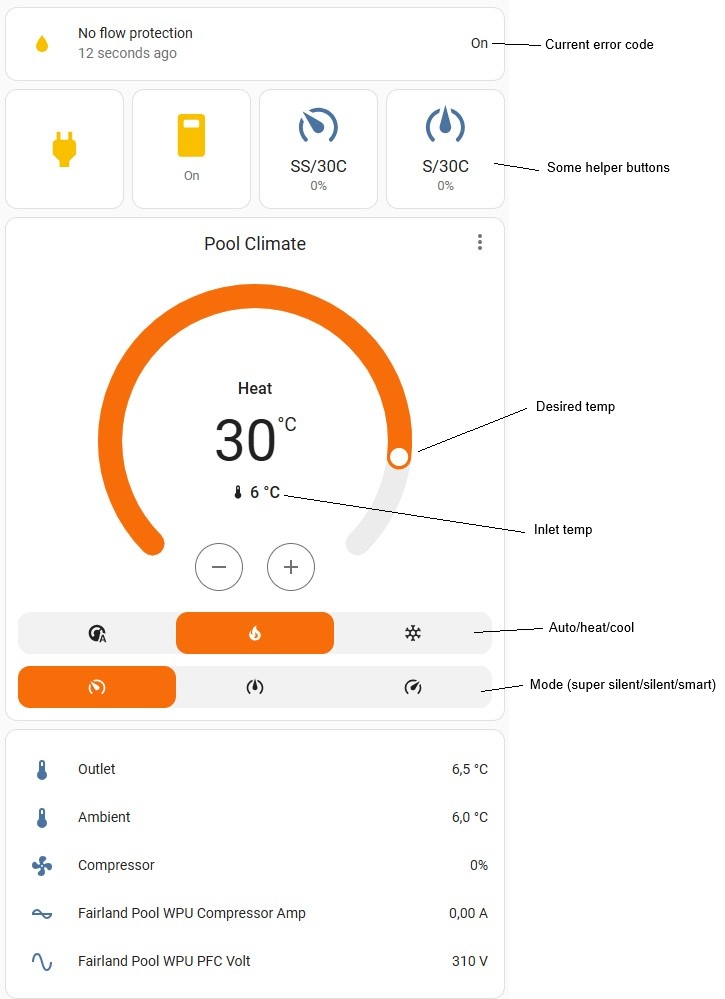

TonyJr · May 1, 2025, 4:51pm

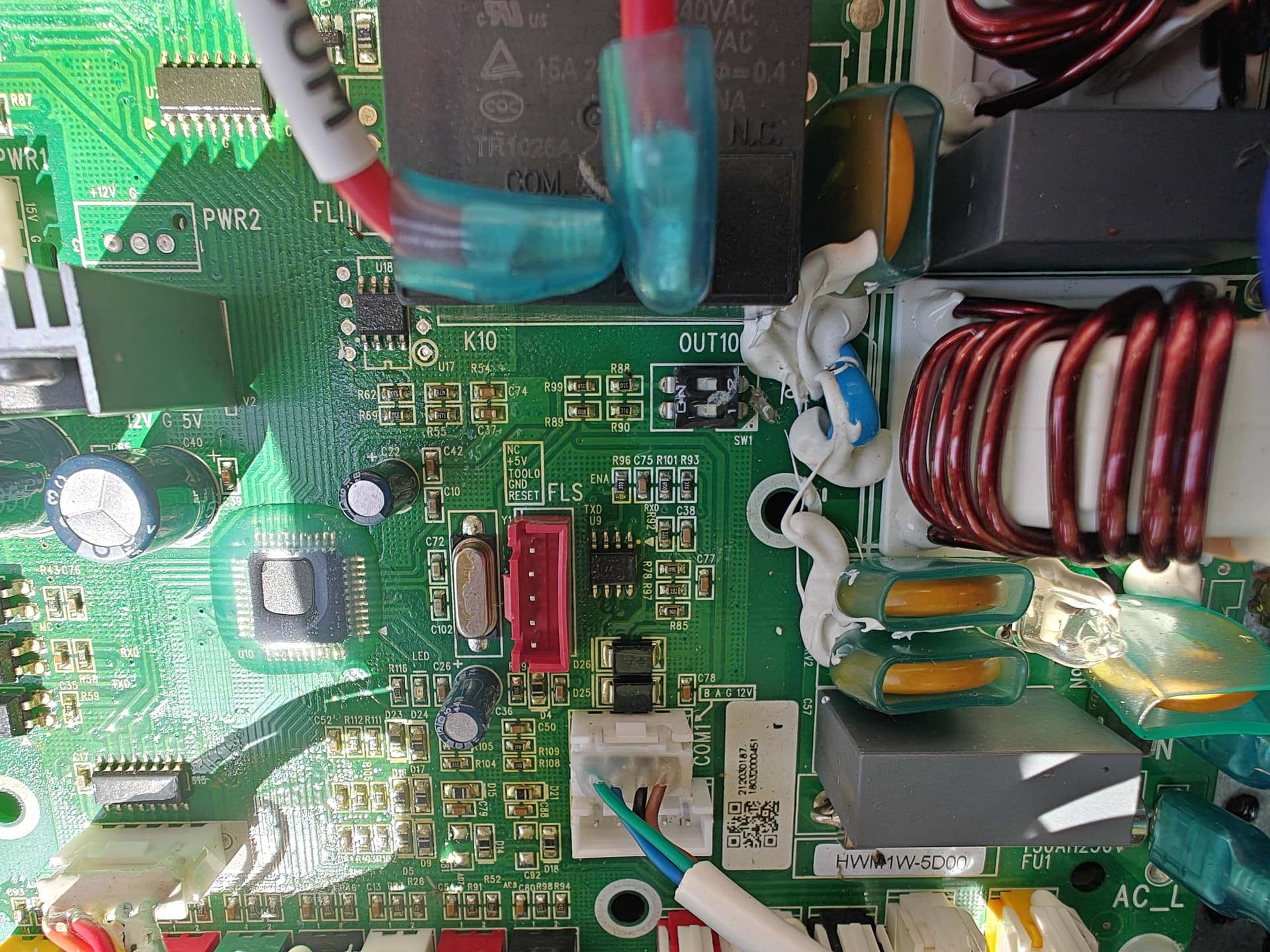

I have found DIP switch 4 on the MWH298 in the OFF position allows Heating only and in the ON position enables Heating/Cooling/Auto.

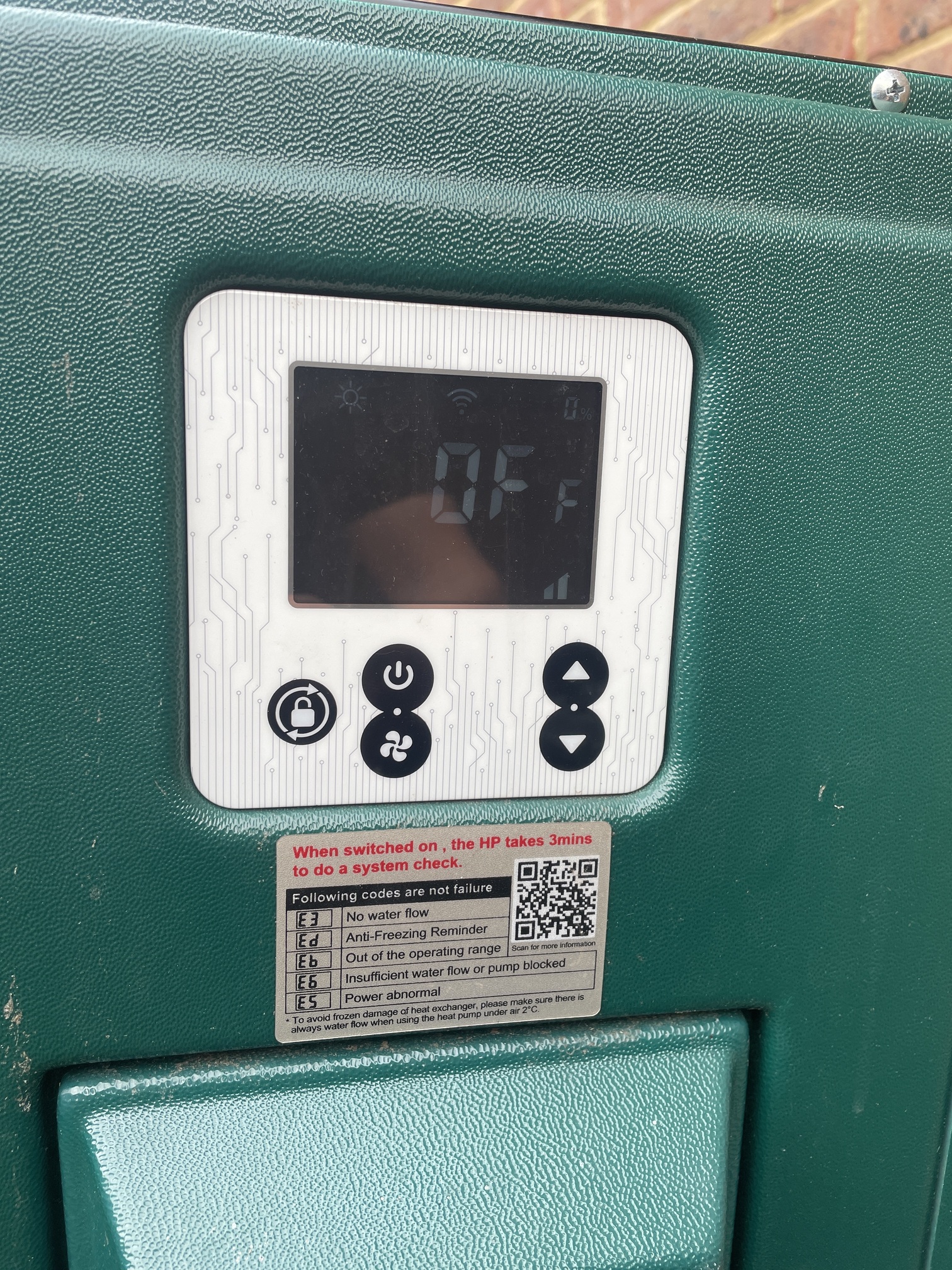

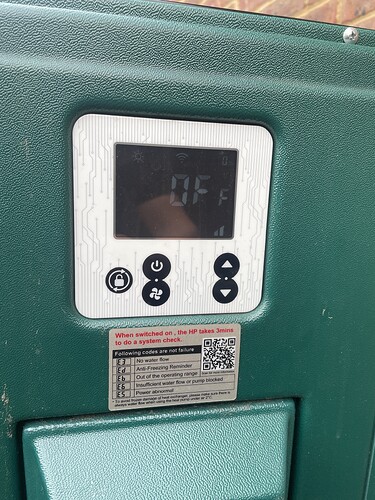

The control panel in this picture has WiFi built-in.

image1512×2016 1.37 MB
The MODBUS coil #6 is not ‘Silence’, it actually shows the status of ‘Remote Demand’, which from factory has a link between the two pins on port DIN2 on the MWH298 PCB. I use this port with a remote relay on my pool controller to signal heat pump demand.

TonyJr · May 4, 2025, 12:20pm

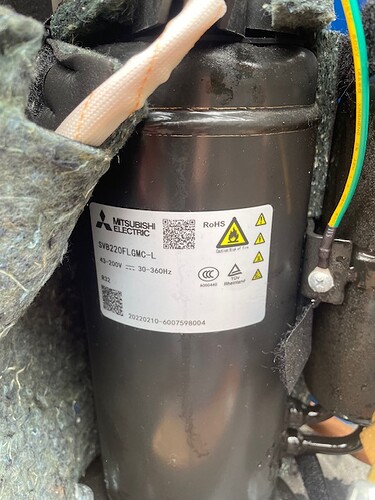

The compressor target frequency and running frequency need to be multiplied by 4 to get the true value (30-360Hz is the running range of the Mitsi compressor). This may vary depending on the compressor in your heatpump and the configuration settings.

IMG_8040480×640 94.3 KB
OUT2 is the relay that signals the Inverter PCB to power it on or off. You could use this to define a Standby mode.
If you use the Waveshare RS485 to WiFi/Ethernet adapter, it can be housed within the top electrical box, with the antenna pointing through a cable hole. An ethernet cable if required can be routed through to where the power connects, negating the need to build external enclosures etc. I have used a spare JST 5 connector that I found and cut the side of the modbus JST 4 port on the main PCB to make it fit. It powers the Waveshare device with no problems.

IMG_9704480×640 123 KB

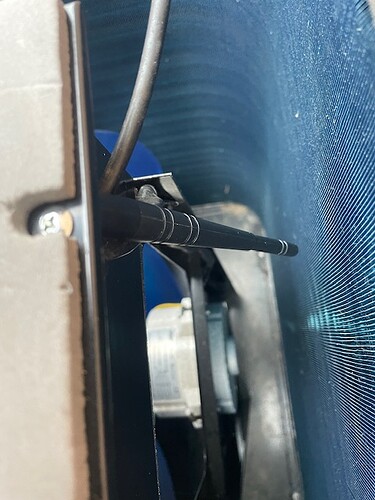

IMG_9705480×640 81.4 KB

jorisee · May 16, 2025, 1:31pm

Anybody had any success with controlling a Hydro-Pro inverter with ESPhome? I’ve got a M5Stack atom paired with a RS485. I;ve flashed below yaml:

github.com/fonske/Modbus-configurations-esphome

Fairland/esphome_snippet_atom_s3_rs485_base.yaml

3b2640912

substitutions:
  name: pool-wp
  friendly_name: Pool WP
  device_description: "Esphome component for fairland with modbus"
  timezone: "Europe/Amsterdam"

esphome:
  name: ${name}
  friendly_name: ${friendly_name}

# Enable Home Assistant API
api:
  reboot_timeout: 0s

# Enable OTA updates
ota:
  - platform: esphome

# Sync time
time:

This file has been truncated. show original
