Controlling a Fairland Pool Heatpump eliminating Tuya

It seems i didnt had to open up my Fairland IPHCR33. There is a modbus connection on the outside! It is connected to the modbus connection on the motherboard.
See connector right next to the yellow warning label.
It is a 4 pin connector. does somebody know what the type of connector is?
Looks like a four pin M9 connector?

link to image:

link to pump:

just ordered the items you mentioned.
On the m5stack website the item is stated as EOL?

for my pool controller, sugarvalley oxylife, i use the M5Stack Atom Lite + M5Stack ATOM Tail485. also working fine. love the little M5stack things

Likely. But where is the fun in that :slight_smile:

I have a Evolution Baseline heatpump with Tuya WiFi module.
The board is different from the one in the 1st post.

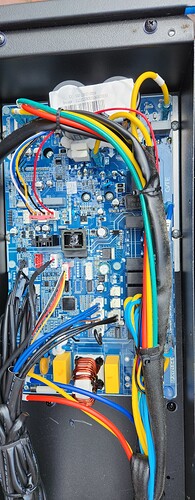

Here is a photo of a board similar to mine: https://community.simon42.com/uploads/default/optimized/3X/7/a/7ad93141db95ad965c02022a012c8b3be11a91a1_2_195x500.jpeg

The RS485 connector #2 is used by the WiFi module, the connector #1 is free - so I decided to give the esphome solution from @rstcologne a try. Great work and thanks for sharing!

I use an ESP8266 (NodeMCU Amica v2) and a RS485-2-TTL converter.
After compiling the esphome firmware, esphome came up and the TX LED on the RS485-2-TTL board starts blinking - but the log window is flooded by messages that indicate problems with the MODBUS:

(...)
22:14:37	[D]	[sensor:093]
'PWP Compressor Power': Sending state nan W with 1 decimals of accuracy
22:14:37	[D]	[modbus_controller:037]
Modbus command to device=1 register=0x00 countdown=0 no response received - removed from send queue
22:14:38	[D]	[sensor:093]
'PWP Compressor Power': Sending state nan W with 1 decimals of accuracy
22:14:38	[W]	[modbus_controller:178]
Duplicate modbus command found: type=0x1 address=0 count=1
22:14:38	[W]	[modbus_controller:178]
Duplicate modbus command found: type=0x2 address=48 count=15
22:14:38	[W]	[modbus_controller:178]
Duplicate modbus command found: type=0x2 address=64 count=32
22:14:38	[W]	[modbus_controller:178]
Duplicate modbus command found: type=0x4 address=0 count=1
22:14:38	[W]	[modbus_controller:178]
Duplicate modbus command found: type=0x4 address=2 count=3
22:14:38	[W]	[modbus_controller:178]
Duplicate modbus command found: type=0x4 address=10 count=2
(...)

I tried several things, but none of them solves the problem.

  1. tried the original config from Richard (GitHub - rstcologne/ESP-Home-Fairland-Heatpump: Control Fairland Heatpumps without Tuya) using the hardware UART from ESP8266 (pins RX and TX)
  2. tried to use other pins - like GPIO4 and GPIO5
  3. tried to throttle the MODBUS controller with command_throttle: 2ms
  4. tried to disable the serial logger
  5. tried to swap UART0
  6. tried another ESP and another RS485-2-TTL converter

Also if I disconnect the RS485-2-TTL converter, there is no change in the warning messages. Same content, same frequency.

I even tried to connect the ESP and the RS485-2-TTL converter to the heatpump - just to check if these are just warning messages that could be ignored - but none of the sensors changed, so I assume the ESP/RS485 is just not working properly.

Any ideas what’s wrong or what else I can test?

When modbus communication is enabled do I have to disable tuya connection or can I use both?

The socket right next to the yellow label is for connecting the wifi-modul (optional)

for me it was not possible to use both connetions in parallel. Forget about the tuya connection :slight_smile: unnessessary!

In my case it seemed to work. However I never tested this. Once the HA integration worked, I eliminated Tuya.

So I should disable onboard wifi before conmecting esp or it doesnt matter?

Hello Elwell,

please update your code on github (t-can…yaml) at line 47
this is new since ESPhome update 2024.06.04 (otherwise…it won’t work any longer)
best regards Thomas

ota:
platform: esphome
password: “xxxx”

I have problem with communication:
ESP8266 mod

substitutions:
  name: pompa_ciepla_basen
  friendly_name: Pompa Ciepła Basen
  device_ip: 192.168.1.242

esphome:
  name: ${name}
  friendly_name: ${friendly_name}
  min_version: 2024.6.0
  name_add_mac_suffix: false
  project:
    name: esphome.web
    version: '1.0'

esp8266:
  board: esp01_1m

# Enable logging
logger:
#  baud_rate: 0
#  hardware_uart: UART0
#  level: INFO

#  hardware_uart: UART0_SWAP

# Enable Home Assistant API
api:

# Allow Over-The-Air updates
ota:
- platform: esphome

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  fast_connect: true
  manual_ip:
    static_ip: ${device_ip}
    gateway: 192.168.1.1
    subnet: 255.255.255.0
  ap:
    ssid: "Pompa Ciepla"
    password: "xxxxxxxx"

web_server:
  port: 80


uart:
  id: mod_bus
  rx_pin: GPIO3
  tx_pin: GPIO1
  baud_rate: 9600
  data_bits: 8
  stop_bits: 1
  parity: NONE

modbus:
#  flow_control_pin: GPIO4
  id: modbus1

modbus_controller:
  - id: fairland
    ## the Modbus device addr
    address: 0x0001
    modbus_id: modbus1
    update_interval: 2s

sensor:

  - platform: modbus_controller
    modbus_controller_id: fairland
    name: "PWP Speed Percentage"
    id: pwp_speed_percentage
    register_type: read
    address: 0x0
    value_type: U_WORD
    unit_of_measurement: "%"

And I keep getting this:

[modbus_controller:037]
Modbus command to device=1 register=0x00 countdown=0 no response received - removed from send queue

Edit. Just added the main switch and it is working. Still need to test other options.
Edit 2. I can write (switch on/off, change heating, cooling) but I cannot read any sensor for example:

  - platform: modbus_controller
    modbus_controller_id: fairland
    name: "PWP Inlet water Temperature"
    id: pwp_inlet_water_temperature
    register_type: read
    address: 0x3
    value_type: U_WORD
    unit_of_measurement: "°C"

returns:

possible that tx or rx is disconnected?

Edit - all working now! BTW Both Tuya and Modbus.

Done. Update ota format for esphome 2024.6+ · Elwell/pool-heatpump@8a5b8ab · GitHub

Quite likely - Ours had similar (4 pin circular with +12, Gnd, A, B). Sadly the cable I purchased off ebay was slightly too fat to fit compared to the original, so I chopped the (supplied) tuya wifi module one off and re-used that for my own ESPhome board

Here is the code for Climate Entity - please use GitHub - jcwillox/hass-template-climate: ❄️Templatable Climate Device for Home Assistant, Supports Running Actions On Service Calls.
You will also need to change sensor names but it should be quite easy.

  climate:
    - platform: climate_template
      name: Basen
      unique_id: basen

      modes:
        - "auto"
        - "off"
        - "cool"
        - "heat"
      min_temp: 12
      max_temp: 40

      current_temperature_template: "{{ states('sensor.pompa_ciepla_basen_pwp_inlet_water_temperature') }}"

      target_temperature_template: >
        {% if is_state('select.pompa_ciepla_basen_pwp_operating_mode', 'Heating') %}
          {{ states('number.pompa_ciepla_basen_pwp_target_temperature_heating') }}
        {% elif is_state('select.pompa_ciepla_basen_pwp_operating_mode', 'Cooling') %}
          {{ states('number.pompa_ciepla_basen_pwp_target_temperature_cooling') }}
        {% elif is_state('select.pompa_ciepla_basen_pwp_operating_mode', 'Auto') %}
          {{ states('number.pompa_ciepla_basen_pwp_target_temperature_auto') }}
        {% else %}
        {% endif %}

      target_temperature_low_template: >
        {% if is_state('select.pompa_ciepla_basen_pwp_operating_mode', 'Heating') %}
          18
        {% elif is_state('select.pompa_ciepla_basen_pwp_operating_mode', 'Cooling') %}
          12
        {% elif is_state('select.pompa_ciepla_basen_pwp_operating_mode', 'Auto') %}
          12
        {% else %}
        {% endif %}

      target_temperature_high_template: >
        {% if is_state('select.pompa_ciepla_basen_pwp_operating_mode', 'Heating') %}
          40
        {% elif is_state('select.pompa_ciepla_basen_pwp_operating_mode', 'Cooling') %}
          30
        {% elif is_state('select.pompa_ciepla_basen_pwp_operating_mode', 'Auto') %}
          40
        {% else %}
        {% endif %}

      hvac_mode_template: >
        {% if is_state('switch.pompa_ciepla_basen_pwp_power_switch', 'off') %}
          off
        {% elif states('select.pompa_ciepla_basen_pwp_operating_mode') == 'Heating' %}
          heat
        {% elif states('select.pompa_ciepla_basen_pwp_operating_mode') == 'Cooling' %}
          cool
        {% elif states('select.pompa_ciepla_basen_pwp_operating_mode') == 'Auto' %}
          auto
        {% else %}
        {% endif %}

      hvac_action_template: >
        {% if is_state('switch.pompa_ciepla_basen_pwp_power_switch', 'off') %}
          off
        {% elif states('select.pompa_ciepla_basen_pwp_operating_mode') == 'Heating' %}
          {% if (states('sensor.pompa_ciepla_basen_pwp_inlet_water_temperature') | float) <= (states('number.pompa_ciepla_basen_pwp_target_temperature_heating') | float) %}
            heating
          {% elif (states('sensor.pompa_ciepla_basen_pwp_inlet_water_temperature') | float) > (states('number.pompa_ciepla_basen_pwp_target_temperature_heating') | float) %}
            idle
          {% endif %}
        {% elif states('select.pompa_ciepla_basen_pwp_operating_mode') == 'Cooling' %}
          {% if (states('sensor.pompa_ciepla_basen_pwp_inlet_water_temperature') | float) <= (states('number.pompa_ciepla_basen_pwp_target_temperature_cooling') | float) %}
            heating
          {% elif (states('sensor.pompa_ciepla_basen_pwp_inlet_water_temperature') | float) > (states('number.pompa_ciepla_basen_pwp_target_temperature_cooling') | float) %}
            cooling
          {% else %}
            idle
          {% endif %}
        {% elif states('select.pompa_ciepla_basen_pwp_operating_mode') == 'Auto' %}
          {% if (states('sensor.pompa_ciepla_basen_pwp_inlet_water_temperature') | float) <= (states('number.pompa_ciepla_basen_pwp_target_temperature_auto') | float) %}
            heating
          {% elif (states('sensor.pompa_ciepla_basen_pwp_inlet_water_temperature') | float) > (states('number.pompa_ciepla_basen_pwp_target_temperature_cooling') | float) %}
            cooling
          {% else %}
            idle
          {% endif %}
        {% else %}
          idle
        {% endif %}

      set_hvac_mode:
        - service: >
            {% if hvac_mode == 'off' %}
              switch.turn_off
            {% else %}
              switch.turn_on
            {% endif %}
          target:
            entity_id: switch.pompa_ciepla_basen_pwp_power_switch

        - service: select.select_option
          target:
            entity_id: select.pompa_ciepla_basen_pwp_operating_mode
          data:
            option: >
              {% if hvac_mode == 'heat' %}
                Heating
              {% elif hvac_mode == 'cool' %}
                Cooling
              {% elif hvac_mode == 'auto' %}
                Auto
              {% else %}
                {{ hvac_mode }}
              {% endif %}


      set_temperature:
        - service: number.set_value
          data:
            value: "{{ temperature }}"
          target:
            entity_id: >
              {% if states('select.pompa_ciepla_basen_pwp_operating_mode') == 'Heating' %}
                number.pompa_ciepla_basen_pwp_target_temperature_heating
              {% elif states('select.pompa_ciepla_basen_pwp_operating_mode') == 'Cooling' %}
                number.pompa_ciepla_basen_pwp_target_temperature_cooling
              {% elif states('select.pompa_ciepla_basen_pwp_operating_mode') == 'Auto' %}
                number.pompa_ciepla_basen_pwp_target_temperature_auto
              {% endif %}


do you have more details on the plug and wire mapping?
