petsie
September 4, 2021, 11:55am
1
I just don’t get any valid pulse counter values and don’t know what I’m doing wrong. Sometimes pulses are counted, but these cannot be valid values.
Is it the GIPO or the pulse counter settings?
# -------------------------------------
# GPIO12: gas meter counter...
# Pulse transmitter Elster IN-Z61
# -------------------------------------
- platform: pulse_counter
pin:
number: GPIO12
mode: INPUT_PULLUP
unit_of_measurement: "m³"
name: "Gasverbrauch aktuell"
id: gas_meter
update_interval: ${update_interval}
accuracy_decimals: 3
icon: "mdi:fire"
state_topic: ${topic_prefix}/gas_current
filters:
- multiply: 0.001
total:
unit_of_measurement: "m³"
name: "Gasverbrauch gesamt"
id: gas_meter_total
accuracy_decimals: 3
filters:
- multiply: 0.001
The IN-Z61 Pulse Transmitter (reed switch) is connected to a Kom Schroder gas diaphragm meter BK-G2.5 and works.
The remaining sensors (water pressure, water temperature) work properly and provide valid data.
If someone has an idea or a tip what I could do, it would help me a lot.
2 Likes
Hallo @petsie
I try to use a slightly different using NodeMCU ESP8266 with a IN-Z65 on the BK-G4
Wbr
petsie
October 15, 2021, 8:43am
3
Yes. but i do use a binary sensorpulse_counter
## ################################################################

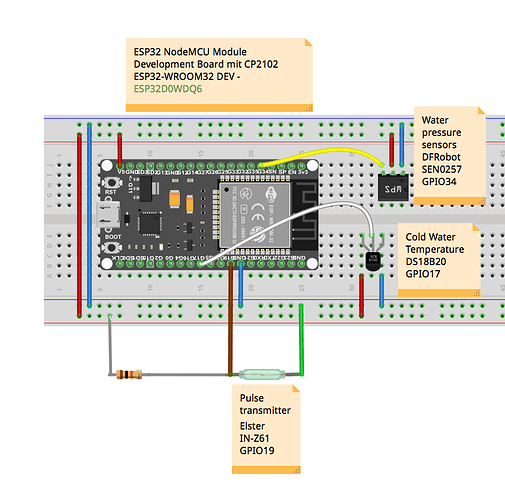

## ESP32 DEV - GAS & WASSER 2021 - SENSOREN
## ESP32 NodeMCU Module WLAN WiFi Development Board mit CP2102
## - GPIO19: Pulscounter Gaszähler
## - GPIO34: Druck Kaltwasser
## - GPIO17: Kaltwasser Temperatur
## ################################################################
substitutions:
platform: ESP32
board: esp32dev
device_name_short: "wasserundgas" # used by esp-home config
friendly_name: "WUG"
device_description: "Gaszähler, Kaltwassertemperatur, Kaltwasserdruck"
update_interval: 60s
impulsfactor: "0.100"
appversion: "1.1.4"
## all used pins on ESP32
gipo_pressure_SEN0257: GPIO34 # COLD WATER PRESSURE SENSOR
gipo_dallas_sensor: GPIO17 # COLD WATER SENSOR
gipo_puse_counter: GPIO19 # GASCOUNTER ZI-61 REED CONTACT
esphome:
name: ${device_name_short}
comment: ${device_description}
platform: ${platform}
board: ${board}
arduino_version: recommended
project:
name: "OE9psj.esp32WUG"
version: ${appversion}
on_boot:
then:
- logger.log:
level: info
format: "BOOTMESSAGE:${device_name_short} API is connected, Device ready!"
- globals.set:
id: boot_counter
value: !lambda "return id(boot_counter)+=1;"
on_shutdown:
then:
- logger.log: ${device_name_short} is down!
# ----------------------------------------------------------------
# Global variables
# ----------------------------------------------------------------
globals:
- id: z61count
type: int
restore_value: yes
initial_value: "0"
- id: z61counter
type: float
restore_value: yes
initial_value: "0.0"
- id: m3kw
type: float
restore_value: yes
initial_value: "10.94"
- id: gas_meter_displayvalue
type: float
restore_value: yes
initial_value: "29126.2"
- id: gas_meter_totalm3
type: float
restore_value: yes
initial_value: "0.0"
- id: gas_meter_displayinital
type: float
restore_value: yes
initial_value: "29060.6"
# ---------------------------------------
# Base packages wifi, timeserver...
# ---------------------------------------
packages:
base: !include common/base.yaml
# ----------------------------------------------------------------
# Native API Component
# ----------------------------------------------------------------
api:
id: espapi
port: 6053
reboot_timeout: 5min
services:
- service: set_gasmeterdisplay
variables:
my_newdisplayvalue: float
then:
- logger.log:
format: "Setting Gasmeter Display value: %.1f"
args: [my_newdisplayvalue]
- globals.set:
id: gas_meter_displayvalue
value: !lambda 'return (my_newdisplayvalue);'
- globals.set:
id: z61counter
value: !lambda 'return (my_newdisplayvalue);'
- globals.set:
id: gas_meter_totalm3
value: !lambda 'return ((my_newdisplayvalue) - id(gas_meter_displayinital));'
- globals.set:
id: z61count
value: !lambda 'return ( ((my_newdisplayvalue) - id(gas_meter_displayinital))/${impulsfactor} );'
- logger.log:
format: "Gasmeter Display value: %.1f"
args: [id(gas_meter_displayvalue)]
# ----------------------------------------------------------------
# GPIO02: used for temperatur sensors data wired
# ----------------------------------------------------------------
dallas:
pin: ${gipo_dallas_sensor}
update_interval: ${update_interval}
# ----------------------------------------------------------------
# Switch to restart, reset all, reset bootcounter
# ----------------------------------------------------------------
switch:
- platform: restart
name: ${friendly_name} restart
- platform: template
name: ${friendly_name} reset all
turn_on_action:
then:
- lambda: |-
id(boot_counter) = 0;
id(z61counter) = 0.0;
id(z61count) = 0;
id(gas_meter_totalm3)= 0.0;
id(gas_meter_displayvalue)= 0.0;
id(daily_value)= 0.0;
id(bootcounter).update();
id(gas_meter_display).update();
id(gas_meter_total_m3).update();
id(gas_meter_total_kw).update();
id(gas_meter_total_kw_day).update();
- logger.log: ${device_name_short} all values reset!
# ----------------------------------------------------------------
# GASCOUNTER ZI-61 REED CONTACT
# GPIO19 <-- o-RC-o <--- GND
# o-10k ----> +5V
# +++++++++++++++++++++++++++++++
# Gasmeter: Krom Schröder BK-G,25
# ++++++++++++++++++++++++++++++++
# Q_max: 4 m³/h
# Q_min: 0.025 m³/h
# V: 1.2 dm³
# p_max: 0.5 bar
# 1 imp = 0.1 m³
# ----------------------------------------------------------------
binary_sensor:
- platform: gpio
pin:
number: GPIO19
mode: INPUT_PULLUP ## set ESP32 pin to input pull-up mode
inverted: false
name: ${friendly_name} Gaszähler Z-61 Impuls
id: gassensor_state
device_class: window
filters:
- delayed_off: 10ms
## This automation will be triggered when a button press ends,
## or in other words on the falling edge of the signal.
on_release:
then:
- lambda: |-
ESP_LOGI("main", " ------- Z-61 SET NEW VALUES !!!!!");
id(z61count) += 1;
id(z61counter) += ${impulsfactor};
id(gas_meter_displayvalue) += ${impulsfactor};
id(gas_meter_totalm3) += ${impulsfactor};
id(daily_value) += ${impulsfactor};
id(gas_meter_display).update();
id(gas_meter_total_m3).update();
id(gas_meter_total_kw).update();
id(gas_meter_total_kw_day).update();
id(gas_meter_m3_today).publish_state(${impulsfactor});
# ----------------------------------------------------------------
# ALL SENSORS
# ----------------------------------------------------------------
sensor:
- platform: template
name: ${friendly_name} Gaszähler Anzeige
id: gas_meter_display
accuracy_decimals: 1
unit_of_measurement: "m³"
icon: "mdi:counter"
device_class: gas
lambda: |-
return id(gas_meter_displayvalue);
- platform: template
name: ${friendly_name} Gaszähler aktuell
id: gas_meter_m3_today
state_class: measurement
device_class: gas
unit_of_measurement: "m³"
accuracy_decimals: 2
- platform: template
name: ${friendly_name} Gaszähler Impulse
id: gas_meter_impulse_count
state_class: measurement
accuracy_decimals: 0
lambda: |-
return (id(z61count));
- platform: template
name: ${friendly_name} Gasverbrauch gesamt
id: gas_meter_total_m3
accuracy_decimals: 1
unit_of_measurement: "m³"
device_class: gas
state_class: total_increasing
lambda: |-
return id(gas_meter_totalm3);
- platform: template
name: ${friendly_name} Gasverbrauch heute
id: gas_meter_total_m3_day
unit_of_measurement: "m³"
state_class: total_increasing
accuracy_decimals: 1
icon: mdi:gauge
lambda: |-
return (id(daily_value));
- platform: template
name: ${friendly_name} Kilowattstunde Gas gesamt
id: gas_meter_total_kw
accuracy_decimals: 2
device_class: power
state_class: total_increasing
unit_of_measurement: "kW"
lambda: |-
return (id(gas_meter_totalm3) * id(m3kw));
- platform: template
name: ${friendly_name} Kilowattstunde Gas heute
id: gas_meter_total_kw_day
unit_of_measurement: "kW"
state_class: total_increasing
device_class: gas
accuracy_decimals: 2
lambda: |-
return (id(daily_value) * id(m3kw));
# -----------------------------------------------------
# DFRobot SEN0257 water pressure sensor 1 GPIO 34
# -----------------------------------------------------
- platform: adc
name: ${friendly_name} Kaltwasser Wasserdruck
pin: ${gipo_pressure_SEN0257}
id: coldwater_pressure
update_interval: 10s
unit_of_measurement: "bar"
accuracy_decimals: 2
device_class: pressure
state_class: measurement
attenuation: 11db
filters:
- lambda: |-
ESP_LOGI("main", "adc volt: %f", id(coldwater_pressure).raw_state);
if(x-0.41<0) return 0.00;
return ((x) * 2.00) - 0.82;
# ------------------------------------------------------------------------------
# PIN GIPO17: DS18B20 Digital temperature sensor 1
# Unique ID: 'dallas-7900000C8579C728'
# ------------------------------------------------------------------------------
- platform: dallas
# index: 0
address: 0x7900000C8579C728
accuracy_decimals: 2
unit_of_measurement: "°C"
name: ${friendly_name} Kaltwasser Temperatur
id: coldwater_temperature
device_class: temperature
state_class: measurement
icon: mdi:thermometer-lines
logger:
level: INFO
# baud_rate: 9600
# baud_rate: 0
Hi petsie,
I’m trying to achieve something similar: I bought an ELV ES-GAS-2 module for my ELSTER gas meter. I don’t have proper results with pulse_counter either and stumbled across your post.
I think your setup is very “creative” (= advanced) - I did not know you could do this sort of thing with ESPHOME. I’m trying to adapt your code, but it seems there is something missing, e.g. variables
boot_counter,daily_value,bootcounter
are those defined in common/base.yaml ? Would you make that file available, too?
Thanks in advance,
@petsie - Perfect, thank you!
Hi @petsie ,
if you don’t mind my asking, I have two more questions:
I discovered, that you have implemented a service in ESPHome to “reset” the Displayvalue and re-calculating related values. Under which circumstances do you use this? Currently I have a delta of about 0.5 to 0.9 m3 per day between the calculated value and the value displayed on the gas meter. Do you have a similar experience or do those values match in your setup?
I couldn’t figure out how the daily values are reset. There seems to be nothing in the ESPHome .yaml file capable of reseting the values and I don’t see a corresponding service from HomeAssistant (like for the display value adjustment.)
Thanks in advance!
petsie
February 28, 2022, 5:54pm
8
Hi,
I couldn’t figure out how the daily values are reset.
See: base.yaml → SNTP Time server
time:
- platform: sntp
id: sntp_time
timezone: Europe/Berlin
servers:
- 0.at.pool.ntp.org
- 0.pool.ntp.org
- 1.pool.ntp.org
on_time:
- seconds: 0
minutes: 0
hours: 0
then:
- lambda: |-
if(id(daily_value)){
id(daily_value)=0.00;
}
- seconds: 0
minutes: 0
then:
- lambda: |-
if(id(hour_value)){
id(hour_value)=0.00;
}
on_time_sync:
then:
- logger.log: "Synchronized sntp clock"
I discovered, that you have implemented a service in ESPHome to “reset” the Displayvalue and…
Do you have a similar experience or do those values match in your setup?
Negativ, i use only “reset” the Displayvalue when I have the device offline or use a new one.filters: - delayed_off: 10ms, maybe this is too short?
Oh dear … THERE I did not look
I will have a look at the filter section – thanks a lot!
petsie
March 1, 2022, 4:58pm
10
You can also enable the logger:
and be shure that you use a pulldown resistor.
I changed to binary_sensor as well. The pulses where count in HA using history_stats.
cheers
- platform: history_stats
name: GasVerbrauchPulser
entity_id: binary_sensor.gasverbrauch_pulser
state: "on"
type: count
start: "{{ now().replace(hour=0, minute=0, second=0) }}"
end: "{{ now() }}"
template:
- sensor:
- name: "gasverbrauchaktuell_m3"
unit_of_measurement: "m³"
state: "{{ states('sensor.GasVerbrauchPulser')|float(0) * 0.01 }}"
device_class: gas
state_class: total_increasing
petsie
March 3, 2022, 6:49am
12
Are you shure ?
I use:
{{ states('sensor.GasVerbrauchPulser')|float(0) * 0.1 }}
I have an BK-G4M and for me 1 imp is 0.01m3.
Yes, they are different, my BK-G4 has
1 imp ≙ 0.01m³
I would like to use this, too. I also use an ESP32 but with the IN-Z65. I would like to know how to install this in Home Assistant? Or do i just have to copy the files and folders to the /config/esphome-directory?
My current code works, but the recorded values and the real value on the meter are more and more different while it records.
This is my current Yaml-Code in ESPhome:
esphome:
name: gassensor
esp32:
board: esp32dev
framework:
type: arduino
# Enable logging
logger:
# Enable Home Assistant API
api:
ota:
password: "<OTA_password>"
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
# Enable fallback hotspot (captive portal) in case wifi connection fails
ap:
ssid: "Gassensor Fallback Hotspot"
password: "<Fallback_Password>"
captive_portal:
sensor:
- platform: pulse_counter
pin:
number: GPIO19
mode: INPUT_PULLDOWN
inverted: false
name: "Gasverbrauch"
update_interval : 15s
filters:
- lambda: |-
static float total_value = 6258.56;
total_value += x * 0.01;
return total_value;
unit_of_measurement: m³
state_class: total_increasing
device_class: gas
accuracy_decimals: 2
icon: 'mdi:fire'
Wirering:
This is my first experience with ESPhome and any help would be appreciated. Thank you.
petsie
March 10, 2022, 6:31pm
16
I had no success with the pulse_counter, so use the binary sensor.
See: ESPHome - Home Assistant ESPHome
Thank you for your answer. i had installed esphome via settings > esphome. it is up and running and i was able to flash my esp32 with the yaml-code i posted.
My Question was how i could install this for my sensor?
petsie
March 10, 2022, 6:44pm
18
Just copy the files and folders to the /config/esphome-directory…
/config/esphome
|-- _static
| |-- webserver-v1.min.css
| `-- webserver-v1.min.js
|-- common
| |-- base.yaml
| |-- base_global.yaml
| |-- base_webserver.yaml
| `-- secrets.yaml
`-- gasmeter.yaml
esphome-dashboard=‘cd ~/ && esphome dashboard ./’
Compile and install the app to the ESP
i will try it and give feedback if it works. Thank you so much!
i have an Gasmeter with imp = 0.01 m³ so i will have to change this
substitutions:
platform: ESP32
board: esp32dev
device_name_short: "gasmeter" # used by esp-home config
friendly_name: "GM2021"
device_description: "Gasmeter"
update_interval: 60s
impulsfactor: "0.100"
appversion: "1.1.7"
to this
substitutions:
platform: ESP32
board: esp32dev
device_name_short: "gasmeter" # used by esp-home config
friendly_name: "GM2021"
device_description: "Gasmeter"
update_interval: 60s
impulsfactor: "0.010"
appversion: "1.1.7"
right?
