Hi, I kinda stopped investigating the floorplan feature because I was focussing on other (zwave) stuff lately. Sorry
Me neither I cant get tha state colour…I am looking for over a week for this!
anyone got an idea about ?
why there is no change colour in the icon?
great job, congratulations … would you like to share the code and how did you do such a nice job?
Can you share your floorplan code and how you did the TV listing part? That is cool.
Can you share you configs on Github?

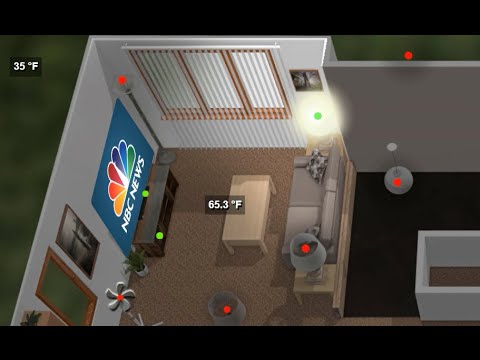

Floorplan using pucture elements
Living room interactive (picture elements)
I can post the yaml if needed, any suggestion is more than welcome
2 Likes
I’ve seen several people display time left on timers but I can’t get it to work right.
If I am able to get it to work at all, it only shows “active” or “Idle” and I’ve tried various templates to no avail.
How would I get the time remaining, on say - my washer, to display?
This is the closest I have gotten but as you can see, it shows the total time and not remaining time.
- platform: template
sensors:
laundry_remaining:
entity_id: sensor.time
value_template: "{{state_attr('timer.laundry', 'remaining')}}"
laundry_display:
entity_id: timer.laundry
value_template: >
{% if is_state('timer.laundry', 'active') %}
{{state_attr('timer.laundry', 'remaining')}}
{% else %}
{% endif %}
1 Like

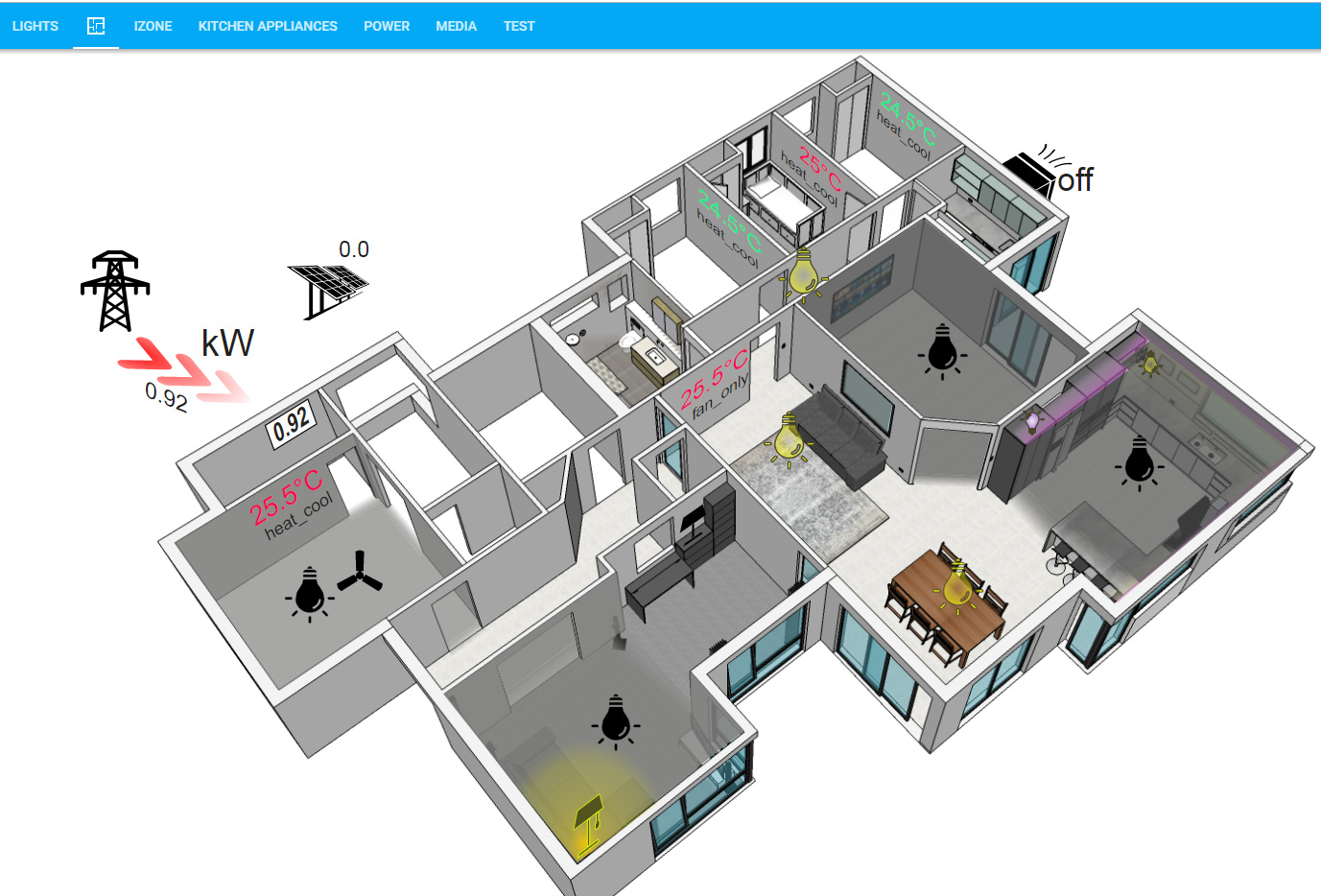

Slowly but surely getting there.
Mine is not as polished as some of the rendered images from sweethome3D. I took mine from a sketchup model I’ve been building as we slowly renovate. Might add a bit of gloss by rendering the model but concentrating on functionality for now.
Almost ready to the point of wall mounting a tablet and testing it on the wife.
Also to note, this one is created using HA-Floorplan for lovelace, rather than picture elements card. I’ve only used this so can’t say which is best to be honest
2 Likes
You’ve got some slick elements going on there.
How did you get the animations to work around the lights and speakers?
Very impressed
i created my floorplan with sweethome 3d and incscape. everthing is working at the moment but i have a long loading time at my tablet. my svg file is 50mb big. Whats the size of your files?
Love the moving info. How’d you do that?? Can you share the config?
1 Like
50mb sounds very big, check the size of base image before importing into Inkscape. No point in anything with a high resolution, best stick to something matching the device you use to access. 1920x1280?
Thanks for ur answer. I changed my floorplan. So now i have 5mb of size. At the old one i created for wach entity a seperate svg. for the on status and imported it, that makes the File big. Now i have only quarters.
Looks great!
For your television, maybe this is something to include (I’m using this, and it works great):
9 Likes
I gave up on the lights on my plan because with multiple lights in one room it didn’t seems to work great with those layers.
But you proof it’s possible for sure with those 2 first examples. Great work on that one. If only I knew how to use photoshop

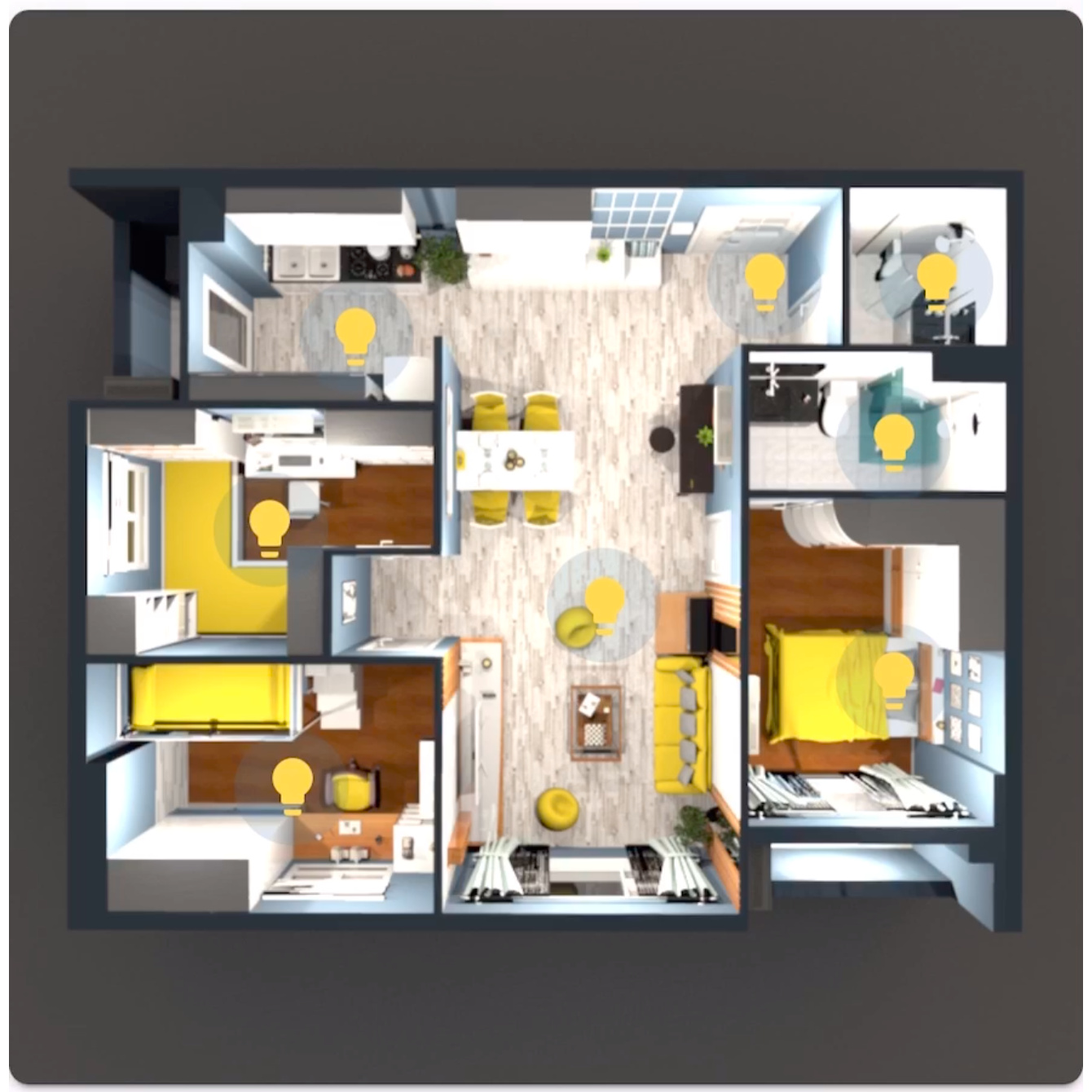

You don’t need to know photoshop well, but you need to render lots of images (use SweetHome 3D).
In my case, my largest room has three lights (hall, kitchen and living room), so I have to render the images:
- Hall light - on
- kitchen light - on
- Living light - on
- Hall-Kitchen light on
- Hall-Living light on
- Kitchen-Living light on
- Hall-Kitchen-Living light on
And then use the condition to display the correct image.
elements:
- conditions:
- entity: light.hall_light
state: 'on'
- entity: light.kitchen_light
state: 'on'
elements:
- image: Hall-Kitchen-Light-On.png
style:
left: 50%
pointer-events: none
top: 50%
width: 100%
tap_action: toggle
type: image
type: conditional
- conditions:
- entity: light.kitchen_light_1
state: 'on'
- entity: light.living_room_light_3
state: 'on'
elements:
- image: Kitchen-Living-Light-On.png
style:
left: 50%
pointer-events: none
top: 50%
width: 100%
tap_action: toggle
type: image
type: conditional
image: Home-Lights-Off.png
type: picture-elements
1 Like
Thanks for the tip!
Do you use the picture elements to make your floorplan? I just can’t have it working with my LG TV (that supports the picture_entity property)
Alex
Took some effort but happy with the result. Would like to optimise the size a bit as the file is 53MB.
Only problem I have is I cannot make it show as a card!
- title: Floorplan
path: floorplan
badges: []
cards:
- type: 'custom:floorplan-card'
name: Simple Floorplan
image: /local/floorplan/examples/simple/simple.svg?v=1.1.14
stylesheet: /local/floorplan/examples/simple/simple.css?v=1.1.14
rules:
- entities:
- binary_sensor.main_bedroom
- binary_sensor.living_area
- binary_sensor.double_garage
states:
- class: binary-sensor-off
state: 'off'
- class: binary-sensor-on
state: 'on'
Just getting a spinning wheel
4 Likes
File is too heavy?
