Show off your picture-elements uses

Version 0.3 of group-element available. Even more cool now. Very efficient use of picture-elements.

11 Likes

Anyone know if it’s possible to lay an input_select drop down on top of a picture-elements card? I’m imagining a picture of the front of my receiver with a blanked out display and two drop down menus on top of it. One for sources and one for audio format. When I try this:

- type: picture-elements
  image: /local/interface_images/theater/receiver.png
  elements:
    - type: input_select.denon_source

I get “Unknown element type encountered: input_select.denon_source.” laid on top of the image of my receiver.

Edit: Well, I sort of got it going with a state-label:

- type: state-label
              style:
                left: 45%
                top: 30%
                font-size: 200%
              entity: input_select.denon_source

The click brings up a pop-up where I can change the source. I still have to get that hooked into the actual changing of the source on the receiver. Not as elegant as I wanted but it’s working. If anyone has any way to do it without the pop-up I’d love to get ideas.

Here’s what it looks like:

2 Likes

I haven’t found anything and wanted something similar for a floorplan to toggle which floor is visible. Currently I’m just using buttons for each floor that when clicked change the selected value of the input select.

I did something similar just using buttons. Not happy about how the white background looks with my shiny new brushed steel background but it’s something to work on later.

2 Likes

Went for a more colourful way to display my MiFlora data with a stripe for each.

The badges are a bit of a fudge as I couldn’t work out how to display a badge without text below it, so essentially I cut off the text display by limiting the size of the banner image.

In my case, the images are 272x43, like so:

oak-for-hass-halved

        - type: picture-elements
          image: /local/oak-for-hass-halved.png
          elements:
            - type: state-badge
              entity: sensor.miflora_ae_xx_moisture
              style:
                top: 68%
                left: 10%
                color: "#ffffff"
            - type: state-badge
              entity: sensor.miflora_ae_xx_conductivity
              style:
                top: 68%
                left: 30%
                color: "#ffffff"
            - type: state-badge
              entity: sensor.miflora_ae_xx_temperature
              style:
                top: 68%
                left: 50%
                color: "#ffffff"

The rest of it is fairly standard I guess, though for changing the font throughout the theme I used this tip:

For the curious it’s: an Oak, a serrated red Maple, regular Maple, Horse Chestnut, general garden patch reading, Lemon, Lemon, Labernum, and Robinia.

3 Likes

Picture elements with custom layout card:

And here’s what it looks like on my tablet:

30 Likes

Wooow! Looks amazing. Mind sharing how you achieved this?

2 Likes

@adrkable I have set up a separate topic dedicated to my design (Picture Elements & Custom Layout Card Interface) I have more info and the actual code listed there.

here is my first picture-elements project. a digital car key-fob. i can lock,unlock,start and stop car engine. i leave in KSA and its so hot in here. my car is equipped with remoter starter i can turn on car engine from fob and it will run for 15 min it will cool down inside temperature.

i did not hack in to car ECU i had spare key-fob with d1 mini and 4066 ic i simulate button press on key-fob.

2 Likes

Hi,

Would you please share with me the instruction to use d1 mini and 4066 ic to simulate button press on keyfobs?
cheers
ALi

i used esphome on d1 mini here is the yaml

esphome:
  name: car
  platform: ESP8266
  board: d1_mini

wifi:
  ssid: "SSID"
  password: "Your Password"

  # Optional manual IP
  manual_ip:
    static_ip: 192.168.1.11
    gateway: 192.168.1.1
    subnet: 255.255.255.0

# Enable logging
logger:

# Enable Home Assistant API
api:

ota:

switch:
#lock pin GPIO
- platform: gpio
  pin: D1
  id: lock_btn

#Unlock pin GPIO
- platform: gpio
  pin: D2
  id: unlock_btn

#Engine pin GPIO
- platform: gpio
  pin: D5
  id: engine_btn



#start engine
- platform: template
  name: Start Engine
  id: start_engine
  optimistic: true
  turn_on_action:
  - switch.turn_on: lock_btn
  - delay: 800ms
  - switch.turn_off: lock_btn
  - delay: 400ms
  - switch.turn_on: engine_btn
  - delay: 4000ms
  - switch.turn_off: engine_btn
  - switch.turn_off: start_engine


#stop engine
- platform: template
  name: Stop Engine
  id: stop_engine
  optimistic: true
  turn_on_action:
  - switch.turn_on: engine_btn
  - delay: 4000ms
  - switch.turn_off: engine_btn
  - switch.turn_off: stop_engine

#Lock Car
- platform: template
  name: Lock car
  id: lock_car
  optimistic: true
  turn_on_action:
  - switch.turn_on: lock_btn
  - delay: 500ms
  - switch.turn_off: lock_btn
  - delay: 500ms
  - switch.turn_on: lock_btn
  - delay: 500ms
  - switch.turn_off: lock_btn
  - switch.turn_off: lock_car

#Unlock Car
- platform: template
  name: Unlock car
  id: unlock_car
  optimistic: true
  turn_on_action:
  - switch.turn_on: unlock_btn
  - delay: 500ms
  - switch.turn_off: unlock_btn
  - switch.turn_off: unlock_car


4066 ic is kind of relay for small components check below image how i connected ic with d1 mini and keyfob.

svg

here is a video tutorial on how to use 4066

let me know if you need anymore help. i’m happy to help

7 Likes

Thank you.

1 Like

This is great! How did you create the buttons to toggle between downstairs and upstairs? Can you share your yaml?

I used an input select with a service-call button. See the heading Creating a Floor Toggle in this post: https://aarongodfrey.dev/home%20automation/creating-a-3d-floorplan-in-home-assistant/

1 Like

That’s pretty cool! I just have one favor to ask. Could you please do me a favor with the proper spacing and tabs? I’m having some difficulty figuring out the syntax in yaml.

Thanks!

elements:
  - entity: sensor.living_room
    state_image:
      Netflix: /local/pictures/netflix.png
      PowerOff: /local/pictures/harmony-remote.png

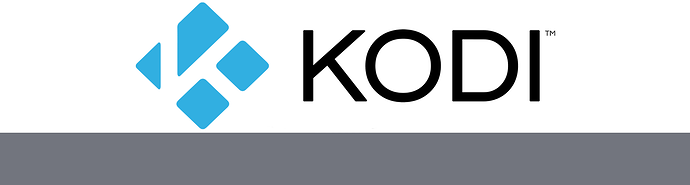

      Watch TV: /local/pictures/kodi.png
      xbox: /local/pictures/xbox-one.png
    style:
      left: 50%
      top: 50%
      width: 100%
    tap_action:
      action: none
    type: image
  - icon: 'mdi:xbox'
    style:
      color: '#FFFFFF'
      left: 5%
      top: 87%
    tap_action:
      action: call-service
      entity_id: remote.living_room
      service: REMOTE.TURN_ON
      service_data:
        activity: xbox
    title: Xbox one
    type: icon
  - icon: 'mdi:netflix'
    style:
      color: '#FFFFFF'
      left: 13%
      top: 87%
    tap_action:
      action: call-service
      entity_id: remote.living_room
      service: REMOTE.TURN_ON
      service_data:
        activity: Netflix
    title: Xbox one
    type: icon
  - icon: 'mdi:kodi'
    style:
      color: '#FFFFFF'
      left: 21%
      top: 87%
    tap_action:
      action: call-service
      entity_id: remote.living_room
      service: REMOTE.TURN_ON
      service_data:
        activity: Watch TV
    title: Xbox one
    type: icon
  - entity: remote.living_room
    service: REMOTE.TURN_OFF
    style:
      color: '#FFFFFF'
      left: 87%
      top: 87%
    title: Turn All Off
    type: service-button
image: /local/pictures/harmony-remote.png
style: null
type: picture-elements
[quote="omerome, post:65, topic:63642, full:true"]
That's pretty cool! I just have one favor to ask. Could you please do me a favor with the proper spacing and tabs? I'm having some difficulty figuring out the syntax in yaml.

Thanks!
[/quote]

Hi sorry that was one of my first times posting here till i read about posting code.
hope it helps you! i can aslo send u the pictures if you like
2 Likes

Thanks again! Sure, if you can send the pictures, that would be great!

1 Like

4 Likes
