AWTRIX 3 - Blueprint for creating simple apps for dummies

10der · May 6, 2024, 4:54pm

Hi!

based on Awtrix (clock) notification [Custom Component]

------------------------------------------------------------------------------------------------------------------------------
PLEASE, INSTALL THE CUSTOM COMPONENT FIRST!!!111111
------------------------------------------------------------------------------------------------------------------------------

Blueprint

set app name (just any)
choose any entity from drop down list what you want to show from HASS
set app icon (please download icon before)
finally, choose your AWTRIX 3 device
[SAVE]

voila

10der · May 6, 2024, 4:56pm

outdoor temp sample

alias: NEW_OUTDOOR_TEMPERATURE
description: ""
use_blueprint:
  path: 10der/awtrix-simple.yaml
  input:
    app_name: awtrix_app_outdoor_temp
    entity: sensor.easyweatherv1_6_4_outdoor_temperature
    awtrix_device: 3135904cc76cc8342758e395c7c19c10
    suffix_text: °C
    app_icon: "2355"
    additional_action:
      - variables:
          icons:
            clear-night: a12181
            cloudy: a2283
            exceptional: a2364
            fog: "17056"
            hail: a2441
            lightning: a630
            lightning-rainy: a49299
            partlycloudy: a2286
            pouring: a49300
            rainy: a2284
            snowy: a2289
            snowy-rainy: a49301
            sunny: a2282
            windy: a15618
            windy-variant: a15618
            unavailable: "52176"
    user_options:
      duration: >-
        5 {{user_data.colors[(user_data.colors.items() | map(attribute='0') |
        map('int') | sort | select('>=', value_template.text) | first) |
        string]}}
    value_template:
      text: "{{states(entity_id)|round}}"
      icon: "{{user_data.icons[states('weather.forecast_home')]}}"
    additional_options:
      icons:
        clear-night: a12181
        cloudy: a2283
        exceptional: a2364
        fog: "17056"
        hail: a2441
        lightning: a630
        lightning-rainy: a49299
        partlycloudy: a2286
        pouring: a49300
        rainy: a2284
        snowy: a2289
        snowy-rainy: a49301
        sunny: a2282
        windy: a15618
        windy-variant: a15618
        full_moon: "2314"
        waning_gibbous: "2315"
        last_quarter: "2316"
        waning_crescent: "2317"
        new_moon: "2318"
        waxing_crescent: "2320"
        first_quarter: "2320"
        waxing_gibbous: "36234"
        home: "96"
        sunrise: "485"
        sunset: "486"
        unavailable: "52176"
      colors:
        "0": "#00ff7f"
        "5": "#00ff2a"
        "10": "#2aff00"
        "15": "#7fff00"
        "20": "#d4ff00"
        "25": "#ffd400"
        "30": "#ff7f00"
        "-15": "#007fff"
        "-10": "#00d4ff"
        "-5": "#00ffd4"

awtrix_18

10der · May 6, 2024, 4:57pm

home temperature sample

alias: NEW_HOME_TEMPERATURE
description: ""
use_blueprint:
  path: 10der/awtrix-simple.yaml
  input:
    app_name: awtrix_app_home_temp
    entity: sensor.home_temperature
    suffix_text: °C
    awtrix_device: 3135904cc76cc8342758e395c7c19c10
    app_icon: "96"
    value_template:
      icon: "{{app_icon}}"
      text: "{{states(entity_id)|round}}"
    user_options:
      duration: 5
      color: |-
        {{user_data.colors[(user_data.colors.items() |
            map(attribute='0') |
            map('int') |
            sort | select('>=', value_template.text) |
            first) | string]}}
    additional_options:
      colors:
        "0": "#00ff7f"
        "5": "#00ff2a"
        "10": "#2aff00"
        "15": "#7fff00"
        "20": "#d4ff00"
        "25": "#ffd400"
        "30": "#ff7f00"
        "-15": "#007fff"
        "-10": "#00d4ff"
        "-5": "#00ffd4"

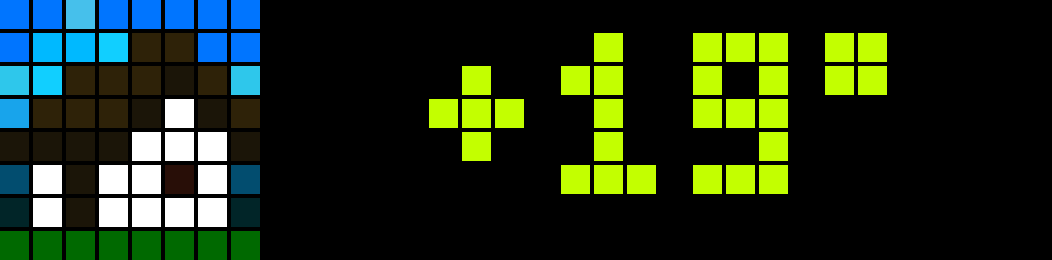

awtrix_19

10der · May 6, 2024, 4:58pm

sunset time sample

alias: NEW_SUN_SET_TIME
description: ""
use_blueprint:
  path: 10der/awtrix-simple.yaml
  input:
    app_name: awtrix_app_sunset_time
    entity: sun.sun
    value_template:
      icon: "{{app_icon}}"
      text: >-
        {{state_attr(entity_id, 'next_setting') | as_timestamp |
        timestamp_custom('%H:%M',true)}}
    app_icon: "486"
    awtrix_device: 3135904cc76cc8342758e395c7c19c10

awtrix_20

10der · May 6, 2024, 5:00pm

night temp with moon phases sample

alias: NEW_NIGHT_TEMERATURE
description: ""
use_blueprint:
  path: 10der/awtrix-simple.yaml
  input:
    awtrix_device: 3135904cc76cc8342758e395c7c19c10
    app_name: awtrix_app_night_temp
    entity: weather.forecast_home
    pre_actions:
      - service: weather.get_forecasts
        target:
          entity_id:
            - weather.forecast_home
        data:
          type: daily
        response_variable: forecast
    value_template:
      icon: "{{user_data.icons[states('sensor.moon_phase')]}}"
      text: >-
        {{forecast['weather.forecast_home'].forecast | map(attribute='templow')
        |  first | round}}
    suffix_text: °C
    additional_options:
      icons:
        full_moon: "2314"
        waning_gibbous: "2315"
        last_quarter: "2316"
        waning_crescent: "2317"
        new_moon: "2318"
        waxing_crescent: "2320"
        first_quarter: "2320"
        waxing_gibbous: "36234"
      colors:
        "0": "#00ff7f"
        "5": "#00ff2a"
        "10": "#2aff00"
        "15": "#7fff00"
        "20": "#d4ff00"
        "25": "#ffd400"
        "30": "#ff7f00"
        "-15": "#007fff"
        "-10": "#00d4ff"
        "-5": "#00ffd4"
    user_options:
      duration: 5
      color: |-
        {{user_data.colors[(user_data.colors.items() |
            map(attribute='0') |
            map('int') |
            sort | select('>=', value_template.text) |
            first) | string]}}

awtrix_21

10der · May 6, 2024, 5:01pm

weather forecast sample

alias: NEW_FORECAST_TEMPERATURE
description: ""
use_blueprint:
  path: 10der/awtrix-simple.yaml
  input:
    awtrix_device: 3135904cc76cc8342758e395c7c19c10
    app_name: awtrix_app_forecast
    app_icon: a2282
    entity: weather.forecast_home
    pre_actions:
      - service: weather.get_forecasts
        target:
          entity_id:
            - weather.forecast_home
        data:
          type: hourly
        response_variable: forecast
    value_template:
      text: >-
        {{forecast['weather.forecast_home'].forecast |  selectattr('datetime',
        'gt', now().timestamp() | timestamp_custom('%Y-%m-%dT%H:00:00+00:00',
        false)) |  map(attribute='temperature') |  first | round}}
      icon: >-
        {{user_data.icons[forecast['weather.forecast_home'].forecast |
        selectattr('datetime', 'gt', now().timestamp() |
        timestamp_custom('%Y-%m-%dT%H:00:00+00:00', false)) |
        map(attribute='condition') |  first]}}
    additional_options:
      icons:
        clear-night: a12181
        cloudy: a2283
        exceptional: a2364
        fog: "17056"
        hail: a2441
        lightning: a630
        lightning-rainy: a49299
        partlycloudy: a2286
        pouring: a49300
        rainy: a2284
        snowy: a2289
        snowy-rainy: a49301
        sunny: a2282
        windy: a15618
        windy-variant: a15618
        full_moon: "2314"
        waning_gibbous: "2315"
        last_quarter: "2316"
        waning_crescent: "2317"
        new_moon: "2318"
        waxing_crescent: "2320"
        first_quarter: "2320"
        waxing_gibbous: "36234"
        home: "96"
        sunrise: "485"
        sunset: "486"
        unavailable: "52176"
      colors:
        "0": "#00ff7f"
        "5": "#00ff2a"
        "10": "#2aff00"
        "15": "#7fff00"
        "20": "#d4ff00"
        "25": "#ffd400"
        "30": "#ff7f00"
        "-15": "#007fff"
        "-10": "#00d4ff"
        "-5": "#00ffd4"
    suffix_text: °C
    user_options:
      duration: 5
      color: |-
        {{user_data.colors[(user_data.colors.items() |
            map(attribute='0') |
            map('int') |
            sort | select('>=', value_template.text) |
            first) | string]}}

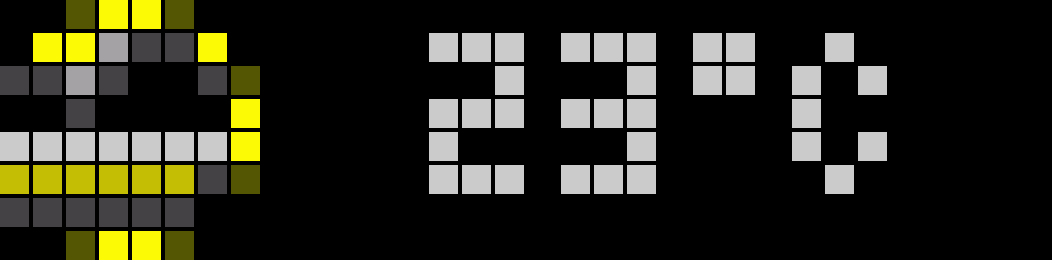

awtrix_23

Schadenfreund · May 17, 2024, 7:46am

At first, thank you for creating / sharing this blueprint.

Since I am new to Home Assistant please excuse my basic questions about the following issues:

~~- how (and where) do I set / download an app icon? (Step 2.)~~ Figured this one out I guess.

When I try to set up an Automation without an icon, it throws the following error:

Error: Service awtrix.awtrix_34b1d8_push_app_data not found
Result:
params:
domain: awtrix
service: awtrix_34b1d8_push_app_data
service_data:
name: solar
data:
text: ‘54’
duration: 5
target: {}
running_script: false

Thanks again and have a great weekend

10der · May 17, 2024, 2:44pm

if you can read the topic… you can see what
based on Awtrix (clock) notification [Custom Component]

so, please install via HACS for example based on Awtrix (clock) notification [Custom Component]

Schadenfreund · May 17, 2024, 2:56pm

Thank you for taking the time to respond and for clarifying - I misunderstood “based on” as being a “fork of” rather than “required to work”.

At least you were able to further dummy proof your post ;).

Have a great weekend.

Ctyd · May 17, 2024, 9:01pm

thx for this Blueprint!
Some years ago we were on the fibaro forum 10der and try node red out with the HC2, after that i was going to Homeassistant-OS because the missconfiguration from the HC2.
I hope you know me old Friend and my english is not better

10der · May 18, 2024, 5:34am

Wow wow!!!
The same no HC3 no F*cIkBARO

Schadenfreund · May 18, 2024, 10:24pm

Me again

Got so far to display my solar battery charge via mqtt to the display thanks to your Blueprint. Thank you again.

Now I want to show a notification (or Custom App) showing the artist - title that is currently playing on a predefined mediaplayer. Ideally only, if something is actually playing.

I thought I could use this:

AWTRIX 3 (blueforcer.de) - Now Playing Blueprint

However, even after defining my display and media player, it never shows up on my Awtrix display. (Checking the logs, I see that Artist and Track Name are captured - for some reason nothing is pushed to the display).

Is this possible with your blueprint?

When I define a media player it only displays the status “playing” but not the Artist / track.

Thanks again!

10der · May 19, 2024, 3:39am

Actually I use another my blueprint for it. But… let me time to try it also.

10der · May 19, 2024, 6:45am

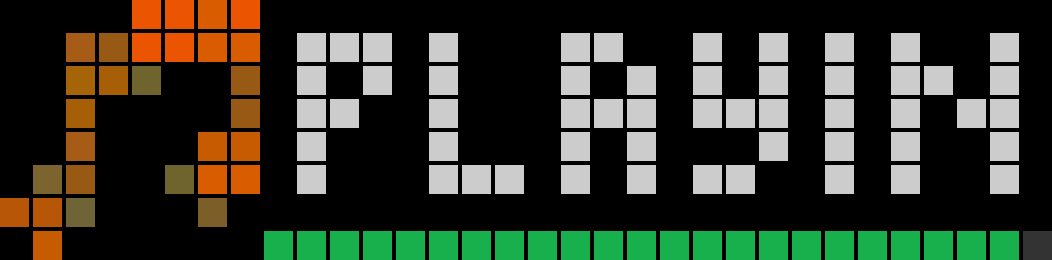

awtrix (16)

alias: AWTRIX SIMPLE PLAYER
description: ""
use_blueprint:
  path: 10der/awtrix-simple.yaml
  input:
    awtrix_device: 3135904cc76cc8342758e395c7c19c10
    app_icon: >-
      /9j/4AAQSkZJRgABAgEASABIAAD/4QDKRXhpZgAATU0AKgAAAAgABgESAAMAAAABAAEAAAEaAAUAAAABAAAAVgEbAAUAAAABAAAAXgEoAAMAAAABAAIAAAITAAMAAAABAAEAAIdpAAQAAAABAAAAZgAAAAAAAABIAAAAAQAAAEgAAAABAAeQAAAHAAAABDAyMjGRAQAHAAAABAECAwCgAAAHAAAABDAxMDCgAQADAAAAAQABAACgAgAEAAAAAQAAAAigAwAEAAAAAQAAAAikBgADAAAAAQAAAAAAAAAAAAD/wAARCAAIAAgDASIAAhEBAxEB/8QAHwAAAQUBAQEBAQEAAAAAAAAAAAECAwQFBgcICQoL/8QAtRAAAgEDAwIEAwUFBAQAAAF9AQIDAAQRBRIhMUEGE1FhByJxFDKBkaEII0KxwRVS0fAkM2JyggkKFhcYGRolJicoKSo0NTY3ODk6Q0RFRkdISUpTVFVWV1hZWmNkZWZnaGlqc3R1dnd4eXqDhIWGh4iJipKTlJWWl5iZmqKjpKWmp6ipqrKztLW2t7i5usLDxMXGx8jJytLT1NXW19jZ2uHi4+Tl5ufo6erx8vP09fb3+Pn6/8QAHwEAAwEBAQEBAQEBAQAAAAAAAAECAwQFBgcICQoL/8QAtREAAgECBAQDBAcFBAQAAQJ3AAECAxEEBSExBhJBUQdhcRMiMoEIFEKRobHBCSMzUvAVYnLRChYkNOEl8RcYGRomJygpKjU2Nzg5OkNERUZHSElKU1RVVldYWVpjZGVmZ2hpanN0dXZ3eHl6goOEhYaHiImKkpOUlZaXmJmaoqOkpaanqKmqsrO0tba3uLm6wsPExcbHyMnK0tPU1dbX2Nna4uPk5ebn6Onq8vP09fb3+Pn6/9sAQwABAQEBAQECAQECAwICAgMEAwMDAwQGBAQEBAQGBwYGBgYGBgcHBwcHBwcHCAgICAgICQkJCQkLCwsLCwsLCwsL/9sAQwECAgIDAwMFAwMFCwgGCAsLCwsLCwsLCwsLCwsLCwsLCwsLCwsLCwsLCwsLCwsLCwsLCwsLCwsLCwsLCwsLCwsL/90ABAAB/9oADAMBAAIRAxEAPwD8R/2bvjdd/sOeKvhP+zJqHjTwH8P9Obw7b+NfHviPT7aPVtQ1VPtF/fQ6O93AsscjyafLAISAHAbNrNKHhjn/AF+/4fO/8E1f+ikf+UfVf/kOv42v2vf+Sr6T/wBiT4H/APUc02vl6v5qxnA+Azmnh82xLcataCnO0KTvKUpNu86c5dbJc1lFJLY/Z8NxPi8tnWwFFXp05csbyqKyikkrRnFeb01bbe5//9k=
    entity: media_player.sonos_roam_sl
    value_template:
      icon: "{{app_icon}}"
      text: >
        {{ user_data.playing_state~': '~(user_data.artist_template ~ ' - ' if
        user_data.artist_template else '') ~ (user_data.title_template if
        user_data.title_template else '-') ~ (' ÷ ' ~ user_data.album_template ~
        ' ÷ ' if user_data.album_template else '') }}
    additional_options:
      playing_state: "{{ states(entity_id) }}"
      title_template: "{{ state_attr(entity_id, 'media_title') }}"
      album_template: "{{ state_attr(entity_id, 'media_album_name') }}"
      artist_template: "{{ state_attr(entity_id, 'media_artist') }}"
      playing_percent: >-
        {{ (100 - ((state_attr(entity_id, 'media_duration') | default(0, true) -
        (state_attr(entity_id, 'media_position') | default(0, true) +
        as_timestamp(now()) - as_timestamp(state_attr(entity_id,
        'media_position_updated_at') | default(now(), true)))) / 60) * 100 /
        (state_attr(entity_id, 'media_duration') | default(1, true)  / 60)) |
        int }}
    app_name: awtrix_app_player
    user_options:
      duration: 5
      progress: "{{user_data.playing_percent}}"
      progressC: 18B04C
      progressBC: "#333333"
      lifetime: 900

10der · May 19, 2024, 8:39am

blueprint updated
https://raw.githubusercontent.com/10der/homeassistant-custom_components-awtrix/main/awtrix-simple.yaml

now supported multiple devices
now you may DO NOT use a user_data object for accessing user variables.

10der · May 19, 2024, 10:30am

btw, tl;dr;

the default goal of this blueprint just show the current state of entity. And why you can see only the current state of media_player entity, cuz media_player publish only own state as entity state.

By default, blueprint have a template

icon: "{{app_icon}}"
text: "{{states(entity_id)}}"

What means - please show me only current state of entity.

if you want to show soothing else, you can override text: "{{states(entity_id)}}" and show here anything what you wish.
for example, you may show entity attribute instead of state.

let’s go to http://homeassistant.local:8123/developer-tools/state
key media player entity here

So, as you can see, “media_title” attribute. Let’s show it.

text: "{{state_attr(entity_id, 'media_title')}}"

that’s all

Schadenfreund · May 19, 2024, 10:41pm

Great - template I modified it a little bit to only display the artist and title without status.

Do you see an way to modify this to not use a fixed lifetime but rather destroy the custom app (send empty payload) if the media player stops playing?

10der · May 20, 2024, 4:43am

yep. will post

10der · May 20, 2024, 4:47am

grab updated https://raw.githubusercontent.com/10der/homeassistant-custom_components-awtrix/main/awtrix-simple.yaml
add condition

image2166×366 27.5 KB

    additional_conditions:
      - condition: template
        value_template: "{{ playing_state == 'playing' }}"

so additional_conditions not meet blueprint will send {}

Schadenfreund · May 21, 2024, 1:06pm

Works like a charm - you are awesome!
