M5Stack PaperS3 + ESPHome: Working with ESP-IDF 5.5.1 (epdiy fork)

Frogy76 · November 27, 2025, 10:52pm

Hi everyone,

I wanted to share my updated fork of the epdiy library that now works with ESP-IDF 5.5.1 and the M5Stack PaperS3 on ESPHome. The original library had several compilation errors with the latest ESP-IDF version, which I’ve fixed.

What Was Fixed

ESP-IDF 5.5.1 introduced breaking changes that prevented the epdiy library from compiling:

gpio_hal_iomux_func_sel removal - Replaced with inline function using PIN_FUNC_SELECT
__DECLARE_RCC_ATOMIC_ENV macro removal - Added compatibility shim for the removed RCC atomic environment macro
GDMA API deprecations - The old API still works but shows warnings (harmless)

All fixes maintain backward compatibility with ESP-IDF 4.x and 5.0-5.4.

Tested and Working

ESP-IDF: 5.5.1 (also works with 4.x and 5.0-5.4)
ESPHome: 2024.11.0+
Hardware: M5Stack PaperS3 (ESP32-S3 with 4.7" e-paper display)
Home Assistant: Full integration via ESPHome text entities

Repository

GitHub - Frogy76/epdiy

Quick Start Example

Here’s a minimal ESPHome configuration to get started:

esphome:
  name: m5papers3
  libraries:
    - epidy=https://github.com/Frogy76/epdiy

external_components:
  - source: github://patrick3399/esphome_components

esp32:
  board: esp32-s3-devkitc-1
  framework:
    type: esp-idf
    version: latest  # ESP-IDF 5.5.1 works!

psram:
  mode: octal
  speed: 80MHz

display:
  - platform: ed047tc1
    id: epaper_display
    # M5Stack PaperS3 pin configuration
    pwr_pin: GPIO45
    bst_en_pin: GPIO46
    xstl_pin: GPIO13
    xle_pin: GPIO15
    spv_pin: GPIO17
    ckv_pin: GPIO18
    pclk_pin: GPIO16
    d0_pin: GPIO6
    d1_pin: GPIO14
    d2_pin: GPIO7
    d3_pin: GPIO12
    d4_pin: GPIO9
    d5_pin: GPIO11
    d6_pin: GPIO8
    d7_pin: GPIO10
    rotation: 90
    update_interval: never
    lambda: |-
      it.print(240, 50, id(my_font), TextAlign::CENTER, id(line1).state.c_str());
      it.print(240, 150, id(my_font), TextAlign::CENTER, id(line2).state.c_str());

font:
  - file: "gfonts://Roboto"
    id: my_font
    size: 48

text:
  - platform: template
    name: "Display Line 1"
    id: line1
    optimistic: true
    max_length: 30
    on_value:
      - component.update: epaper_display

  - platform: template
    name: "Display Line 2"
    id: line2
    optimistic: true
    max_length: 30
    on_value:
      - component.update: epaper_display

Control from Home Assistant

Once the device is added to Home Assistant, you can update the display using services:

Via UI:

Go to Developer Tools → Services
Select text.set_value
Choose entity: text.display_line_1
Enter your text

Via Automation:

service: text.set_value
target:
  entity_id: text.display_line_1
data:
  value: "Temperature: {{ states('sensor.living_room_temperature') }}°C"

Example Dashboard Card:

type: entities
entities:
  - entity: text.display_line_1
  - entity: text.display_line_2
title: E-Paper Display Control

Full Example

A complete working example with 12 text lines, touchscreen, battery monitoring, and RTC is available in the repository: papers3.yaml

Use Cases

Information Display: Weather, calendar, to-do lists
Sensor Dashboard: Room temperatures, energy usage
Notifications: Doorbell alerts, delivery notifications
Status Board: Home Assistant automation status

The e-paper display is perfect for low-power, always-visible information that doesn’t need frequent updates.

Tips

Set update_interval: never and trigger updates manually via component.update
Use a system_initialized flag to prevent updates during boot
The display has excellent readability in bright light (no backlight)
Battery life is excellent due to e-paper’s ultra-low power consumption

Hope this helps anyone trying to use M5Stack PaperS3 with the latest ESPHome/ESP-IDF!

Doekwerk · November 28, 2025, 11:12am

Followed your Quick Start Example and got the response:

INFO ESPHome 2025.11.0
INFO Reading configuration /config/esphome/display1.yaml…
INFO Unable to import component ed047tc1.display: No module named ‘esphome.components.ed047tc1’
Failed config

Platform not found: ‘display.ed047tc1’

Doekwerk · November 28, 2025, 11:48am

You are missing:

external_components:
  - source: github://patrick3399/esphome_components

Frogy76 · November 28, 2025, 3:51pm

Thanks I updated the Quick Start Example

tractiveeffort · January 3, 2026, 2:35pm

Just wanted to say thanks for this, it got me started once I’d added the wifi credentials etc.

carlderdritte · January 11, 2026, 2:34pm

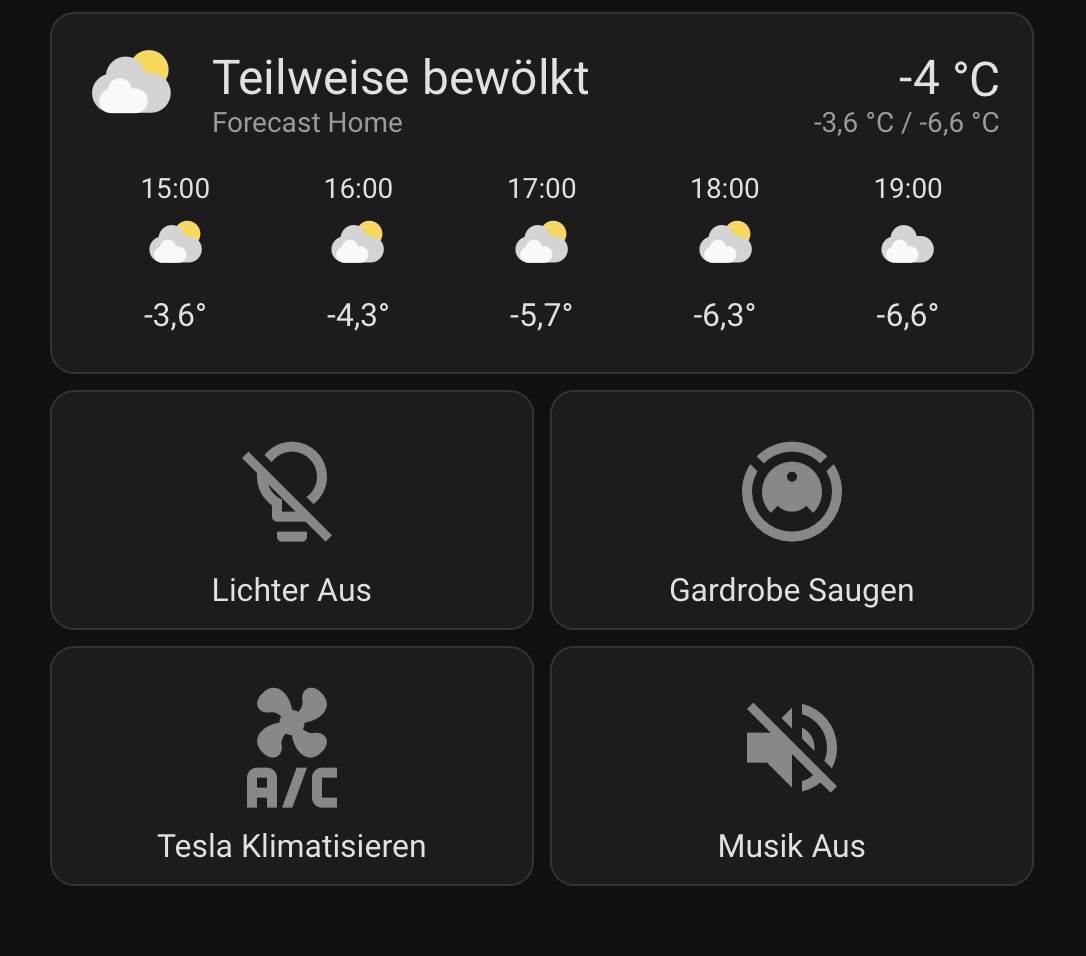

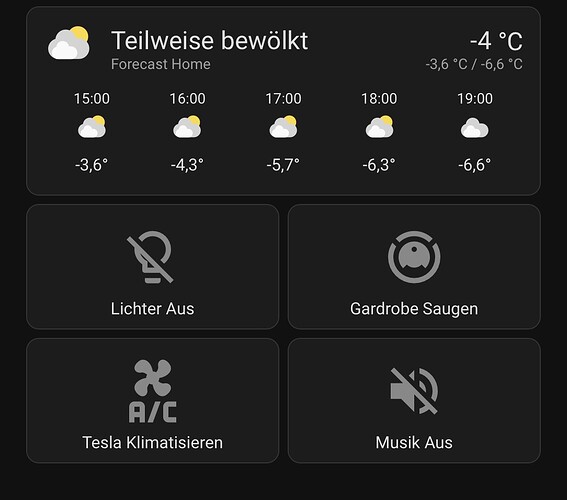

I am looking for an e-paper battery-powered device that can show a touchable HA dashboard (see pic). I went down the Kindle rabbit hole, and it was a fail because battery life would only last 24-36 hours… so long story short, is this epdiy fork what I am looking for? Will an M5Stack PaperS3 work on ESPHome as an interactive dashboard? Sorry if this is a stupid question, but I don’t want to buy any more stuff until I know it will work like I (kind of) want it to.

Thx

Mar1us · February 5, 2026, 9:05am

i get the following error during compiling:

src/esphome/components/ed047tc1/ed047tc1.cpp: In member function 'virtual void esphome::ed047tc1::ED047TC1Display::dump_config()':
src/esphome/components/ed047tc1/ed047tc1.cpp:208:58: error: 'get_pin_name' was not declared in this scope
  208 |         if (d_pins_[i] != nullptr && hasattr(d_pins_[i], get_pin_name)) {
      |                                                          ^~~~~~~~~~~~
src/esphome/components/ed047tc1/ed047tc1.cpp:208:38: error: 'hasattr' was not declared in this scope
  208 |         if (d_pins_[i] != nullptr && hasattr(d_pins_[i], get_pin_name)) {
      |                                      ^~~~~~~
In file included from src/esphome/core/component.h:9,
                 from src/esphome/components/ed047tc1/ed047tc1.h:3,
                 from src/esphome/components/ed047tc1/ed047tc1.cpp:1:
src/esphome/components/ed047tc1/ed047tc1.cpp:209:65: error: 'class esphome::GPIOPin' has no member named 'get_pin_name'
  209 |              ESP_LOGCONFIG(TAG, "  D%d Pin: %s", i, d_pins_[i]->get_pin_name().c_str());
      |                                                                 ^~~~~~~~~~~~
src/esphome/core/log.h:98:101: note: in definition of macro 'esph_log_config'
   98 |   ::esphome::esp_log_printf_(ESPHOME_LOG_LEVEL_CONFIG, tag, __LINE__, ESPHOME_LOG_FORMAT(format), ##__VA_ARGS__)
      |                                                                                                     ^~~~~~~~~~~
src/esphome/components/ed047tc1/ed047tc1.cpp:209:14: note: in expansion of macro 'ESP_LOGCONFIG'
  209 |              ESP_LOGCONFIG(TAG, "  D%d Pin: %s", i, d_pins_[i]->get_pin_name().c_str());
      |              ^~~~~~~~~~~~~
*** [.pioenvs/m5paper/src/esphome/components/ed047tc1/ed047tc1.cpp.o] Error 1
========================= [FAILED] Took 191.84 seconds =========================

georgekiwi · February 5, 2026, 2:32pm

yeah, unfortunately this seems to have stopped working. I get the same error messages

clemens-g · February 6, 2026, 7:45pm

I had the same Problem.
I´ve tried to compile with an older ESPHome Version (2025.8) and it worked.
Legacy ESPHome versions add-on

10der · February 13, 2026, 7:25am

    for (int i=0; i<8; ++i) {
        #if ESPHOME_VERSION_CODE >= VERSION_CODE(2023, 1, 0)
        if (d_pins_[i] != nullptr) {
            ESP_LOGCONFIG(TAG, "  D%d Pin: Configured (Pin: %d)", i, esphome_pin_to_gpio_num(d_pins_[i]));
        } else { ESP_LOGCONFIG(TAG, "  D%d Pin: NONE", i); }
        #else
        ESP_LOGCONFIG(TAG, "  D%d Pin: %s", i, d_pins_[i] ? "Configured" : "NONE");
        #endif
    }

as temp solution

Snoopey · March 10, 2026, 3:21pm

I’m not getting compilation errors with ESPHome 2026.2.4, though after flashing and booting nothing seems to happen.
This is my config:

esphome:
  name: m5papers3-office
  friendly_name: "M5 Paper S3 Dashboard"
  platformio_options:
    build_flags: "-DBOARD_HAS_PSRAM"
  libraries:
    - epidy=https://github.com/Frogy76/epdiy
  on_boot:
    then:
      - rtttl.play: 'siren:d=8,o=5,b=100:d,e,d,e,d,e,d,e'
      - delay: 5s
      - component.update: ed047tc1_display
      - lambda: |-
          id(system_initialized) = true;

esp32:
  board: esp32-s3-devkitc-1
  flash_size: 16MB
  framework:
    type: esp-idf
    version: latest
    sdkconfig_options:
      CONFIG_EPD_OUTPUT_LUT_ASSEMBLY: "y"
      CONFIG_ESP32S3_INSTRUCTION_SET_AI_DSP: "y"
      CONFIG_ESP32S3_VECTOR_INSTRUCTIONS_SUPPORT: "y"

globals:
  - id: system_initialized
    type: bool
    restore_value: no
    initial_value: 'false'

psram:
  mode: octal
  speed: 80MHz

interval:
  - interval: 8s
    then:
      - light.turn_on: statled
      - delay: 1s
      - light.turn_off: statled


logger:
  level: DEBUG
  baud_rate: 0
  logs:
    api.service: WARN
    wifi: WARN
    esp-idf: NONE
    light: WARN
debug:
  update_interval: 10s

api:
  encryption:
    key: !secret api_key
  reboot_timeout: 6h

ota:
  - platform: esphome
    password: !secret ota_password

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  reboot_timeout: 6h
  #power_save_mode: LIGHT

external_components:
  - source: github://patrick3399/esphome_components
  # - source: github://n-serrette/esphome_sd_card   #If need SD Card Support
i2c:
  sda: GPIO41
  scl: GPIO42
  scan: true
  id: bus_internal
  frequency: 200kHz

# sd_mmc_card:  #If need SD Card Support
#   id: micro_sd
#   mode_1bit: true
#   clk_pin: GPIO7
#   cmd_pin: GPIO8
#   data0_pin: GPIO9
#   data3_pin: GPIO10

# sd_file_server:  #If need SD Card Support
#   id: file_server
#   url_prefix: file
#   root_path: "/"
#   enable_deletion: true
#   enable_download: true
#   enable_upload: true

touchscreen:
  platform: gt911
  id: my_touchscreen
  interrupt_pin: GPIO48
  transform:
    mirror_x: true
    mirror_y: true
    swap_xy: false
  on_touch:
    - lambda: |-
          ESP_LOGI("cal", "x=%d, y=%d, x_raw=%d, y_raw=%0d",
              touch.x,
              touch.y,
              touch.x_raw,
              touch.y_raw
              );
light:
  - platform: monochromatic
    id: statled
    name: "Status LED"
    output: gpio_0
    restore_mode: ALWAYS_OFF
    internal: True
    disabled_by_default: True

output:
  - platform: ledc
    id: rtttl_pin
    pin: 21
  - platform: ledc
    id: gpio_0
    pin: 0
    inverted: True
rtttl:
  output: rtttl_pin
  id: rtttl_buzz
  gain: 60%

text_sensor:
  - platform: debug
    device:
      name: "Device Info"
    reset_reason:
      name: "Reset Reason"

sensor:
  - platform: debug
    free:
      name: "Heap Free"
    block:
      name: "Heap Max Block"
    loop_time:
      name: "Loop Time"
    psram:
      name: "Free PSRAM"
  - platform: internal_temperature
    name: "Chip Temp"
  - platform: adc
    pin: GPIO3
    name: "Battery Voltage"
    update_interval: 30s
    attenuation: 12db
    filters:
      - multiply: 2.0
  - platform: adc
    pin: GPIO5
    name: "USB DET"
    update_interval: 30s
    attenuation: 12db
    filters:
      - multiply: 2.0
  #- platform: bmi270
  #  address: 0x68
  #  accel_x:
  #    name: "BMI270 Accel X"
  #  accel_y:
  #    name: "BMI270 Accel Y"
  #  accel_z:
  #    name: "BMI270 Accel Z"
  #  gyro_x:
  #    name: "BMI270 Gyro X"
  #  gyro_y:
  #    name: "BMI270 Gyro Y"
  #  gyro_z:
  #    name: "BMI270 Gyro Z"
  #  temperature:
  #    name: "BMI270 Temperature"
  #  power_save_mode: LOW_POWER # OR NORMAL
  #  update_interval: 60s
    # Add new configuration options specific to BMI270 if needed
    # For example, accelerometer and gyroscope range selection:
    # accel_range: '8g' # Options: '2g', '4g', '8g', '16g' [cite: 5]
    # gyro_range: '2000dps' # Options: '125dps', '250dps', '500dps', '1000dps', '2000dps' [cite: 5]

  # - platform: sd_mmc_card  #If need SD Card Support
  #   type: used_space
  #   name: "SD card used space"
  # - platform: sd_mmc_card
  #   type: total_space
  #   name: "SD card total space"


# text_sensor:
  # - platform: sd_mmc_card  #If need SD Card Support
  #   sd_card_type:
  #     name: "SD card type"

binary_sensor:
  - platform: gpio
    pin:
      number: 4
      inverted: True
    name: "Charge Status"
    device_class: battery_charging


time:
  - platform: pcf8563  #BM8563
    id: pcf8563_time
    address: 0x51
    timezone: Asia/Taipei
    update_interval: never

  - platform: homeassistant
    id: homeassistant_time
    timezone: Asia/Taipei
    update_interval: 1h
    on_time_sync:
      then:
        pcf8563.write_time:
          id: pcf8563_time

display:
  - platform: ed047tc1
    id: ed047tc1_display
    pwr_pin: GPIO45
    bst_en_pin: GPIO46
    xstl_pin: GPIO13
    xle_pin: GPIO15
    spv_pin: GPIO17
    ckv_pin: GPIO18
    pclk_pin: GPIO16
    d0_pin: GPIO6
    d1_pin: GPIO14
    d2_pin: GPIO7
    d3_pin: GPIO12
    d4_pin: GPIO9
    d5_pin: GPIO11
    d6_pin: GPIO8
    d7_pin: GPIO10
    update_interval: never
    rotation: 90
    lambda: |-
       it.print(it.get_width() / 2, it.get_height() / 12 *1 , id(Roboto70), TextAlign::BOTTOM_CENTER, id(textline01).state.c_str());
       it.print(it.get_width() / 2, it.get_height() / 12 *2 , id(Roboto70), TextAlign::BOTTOM_CENTER, id(textline02).state.c_str());
       it.print(it.get_width() / 2, it.get_height() / 12 *3 , id(Roboto70), TextAlign::BOTTOM_CENTER, id(textline03).state.c_str());
       it.print(it.get_width() / 2, it.get_height() / 12 *4 , id(Roboto70), TextAlign::BOTTOM_CENTER, id(textline04).state.c_str());
       it.print(it.get_width() / 2, it.get_height() / 12 *5 , id(Roboto70), TextAlign::BOTTOM_CENTER, id(textline05).state.c_str());
       it.print(it.get_width() / 2, it.get_height() / 12 *6 , id(Roboto70), TextAlign::BOTTOM_CENTER, id(textline06).state.c_str());
       it.print(it.get_width() / 2, it.get_height() / 12 *7 , id(Roboto70), TextAlign::BOTTOM_CENTER, id(textline07).state.c_str());
       it.print(it.get_width() / 2, it.get_height() / 12 *8 , id(Roboto70), TextAlign::BOTTOM_CENTER, id(textline08).state.c_str());
       it.print(it.get_width() / 2, it.get_height() / 12 *9 , id(Roboto70), TextAlign::BOTTOM_CENTER, id(textline09).state.c_str());
       it.print(it.get_width() / 2, it.get_height() / 12 *10 , id(Roboto70), TextAlign::BOTTOM_CENTER, id(textline10).state.c_str());
       it.print(it.get_width() / 2, it.get_height() / 12 *11 , id(Roboto70), TextAlign::BOTTOM_CENTER, id(textline11).state.c_str());
       it.print(it.get_width() / 2, it.get_height() , id(Roboto70), TextAlign::BOTTOM_CENTER, id(textline12).state.c_str());
font:
  - file: "gfonts://Roboto"
    id: Roboto70
    size: 70

text:
  - platform: template
    name: "Text Line 01"
    id: textline01
    optimistic: true
    min_length: 0
    max_length: 26
    initial_value: 'TEXT 01'
    mode: text
    on_value:
      then:
        - if:
            condition:
              lambda: 'return id(system_initialized) == true;'
            then:
              - component.update: ed047tc1_display
  - platform: template
    name: "Text Line 02"
    id: textline02
    optimistic: true
    min_length: 0
    max_length: 26
    initial_value: 'TEXT 02'
    mode: text
    on_value:
      then:
        - if:
            condition:
              lambda: 'return id(system_initialized) == true;'
            then:
              - component.update: ed047tc1_display
  - platform: template
    name: "Text Line 03"
    id: textline03
    optimistic: true
    min_length: 0
    max_length: 26
    initial_value: 'TEXT 03'
    mode: text
    on_value:
      then:
        - if:
            condition:
              lambda: 'return id(system_initialized) == true;'
            then:
              - component.update: ed047tc1_display
  - platform: template
    name: "Text Line 04"
    id: textline04
    optimistic: true
    min_length: 0
    max_length: 26
    initial_value: 'TEXT 04'
    mode: text
    on_value:
      then:
        - if:
            condition:
              lambda: 'return id(system_initialized) == true;'
            then:
              - component.update: ed047tc1_display
  - platform: template
    name: "Text Line 05"
    id: textline05
    optimistic: true
    min_length: 0
    max_length: 26
    initial_value: 'TEXT 05'
    mode: text
    on_value:
      then:
        - if:
            condition:
              lambda: 'return id(system_initialized) == true;'
            then:
              - component.update: ed047tc1_display
  - platform: template
    name: "Text Line 06"
    id: textline06
    optimistic: true
    min_length: 0
    max_length: 26
    initial_value: 'TEXT 06'
    mode: text
    on_value:
      then:
        - if:
            condition:
              lambda: 'return id(system_initialized) == true;'
            then:
              - component.update: ed047tc1_display
  - platform: template
    name: "Text Line 07"
    id: textline07
    optimistic: true
    min_length: 0
    max_length: 26
    initial_value: 'TEXT 07'
    mode: text
    on_value:
      then:
        - if:
            condition:
              lambda: 'return id(system_initialized) == true;'
            then:
              - component.update: ed047tc1_display
  - platform: template
    name: "Text Line 08"
    id: textline08
    optimistic: true
    min_length: 0
    max_length: 26
    initial_value: 'TEXT 08'
    mode: text
    on_value:
      then:
        - if:
            condition:
              lambda: 'return id(system_initialized) == true;'
            then:
              - component.update: ed047tc1_display
  - platform: template
    name: "Text Line 09"
    id: textline09
    optimistic: true
    min_length: 0
    max_length: 26
    initial_value: 'TEXT 09'
    mode: text
    on_value:
      then:
        - if:
            condition:
              lambda: 'return id(system_initialized) == true;'
            then:
              - component.update: ed047tc1_display
  - platform: template
    name: "Text Line 10"
    id: textline10
    optimistic: true
    min_length: 0
    max_length: 26
    initial_value: 'TEXT 10'
    mode: text
    on_value:
      then:
        - if:
            condition:
              lambda: 'return id(system_initialized) == true;'
            then:
              - component.update: ed047tc1_display
  - platform: template
    name: "Text Line 11"
    id: textline11
    optimistic: true
    min_length: 0
    max_length: 26
    initial_value: 'TEXT 11'
    mode: text
    on_value:
      then:
        - if:
            condition:
              lambda: 'return id(system_initialized) == true;'
            then:
              - component.update: ed047tc1_display
  - platform: template
    name: "Text Line 12"
    id: textline12
    optimistic: true
    min_length: 0
    max_length: 26
    initial_value: 'TEXT 12'
    mode: text
    on_value:
      then:
        - if:
            condition:
              lambda: 'return id(system_initialized) == true;'
            then:
              - component.update: ed047tc1_display

And when I look at the logs and reset the device, this is as far as it gets:

[15:12:36]ESP-ROM:esp32s3-20210327
[15:12:36]Build:Mar 27 2021
[15:12:36]rst:0x15 (USB_UART_CHIP_RESET),boot:0x8 (SPI_FAST_FLASH_BOOT)
[15:12:36]Saved PC:0x40377ef2
[15:12:36]SPIWP:0xee
[15:12:36]mode:DIO, clock div:1
[15:12:36]load:0x3fce2820,len:0x158c
[15:12:36]load:0x403c8700,len:0xd24
[15:12:36]load:0x403cb700,len:0x2f28
[15:12:36]entry 0x403c891c
[15:12:36]I (24) boot: ESP-IDF 5.5.2 2nd stage bootloader
[15:12:36]I (24) boot: compile time Mar 10 2026 13:12:56
[15:12:36]I (25) boot: Multicore bootloader
[15:12:36]I (25) boot: chip revision: v0.2
[15:12:36]I (27) boot: efuse block revision: v1.3
[15:12:36]I (31) boot.esp32s3: Boot SPI Speed : 80MHz
[15:12:36]I (35) boot.esp32s3: SPI Mode       : DIO
[15:12:36]I (39) boot.esp32s3: SPI Flash Size : 4MB
[15:12:36]I (42) boot: Enabling RNG early entropy source...
[15:12:36]I (47) boot: Partition Table:
[15:12:36]I (49) boot: ## Label            Usage          Type ST Offset   Length
[15:12:36]I (56) boot:  0 otadata          OTA data         01 00 00009000 00002000
[15:12:36]I (62) boot:  1 phy_init         RF data          01 01 0000b000 00001000
[15:12:36]I (69) boot:  2 app0             OTA app          00 10 00010000 001c0000
[15:12:36]I (75) boot:  3 app1             OTA app          00 11 001d0000 001c0000
[15:12:36]I (82) boot:  4 nvs              WiFi data        01 02 00390000 0006d000
[15:12:36]I (88) boot: End of partition table
[15:12:36]I (92) esp_image: segment 0: paddr=00010020 vaddr=3c030020 size=1a7f8h (108536) map
[15:12:36]I (118) esp_image: segment 1: paddr=0002a820 vaddr=3fc90300 size=02e44h ( 11844) load
[15:12:36]I (121) esp_image: segment 2: paddr=0002d66c vaddr=40374000 size=029ach ( 10668) load
[15:12:36]I (125) esp_image: segment 3: paddr=00030020 vaddr=42000020 size=2321ch (143900) map
[15:12:36]I (155) esp_image: segment 4: paddr=00053244 vaddr=403769ac size=09878h ( 39032) load
[15:12:36]I (164) esp_image: segment 5: paddr=0005cac4 vaddr=50000000 size=00020h (    32) load
[15:12:36]I (170) boot: Loaded app from partition at offset 0x10000
[15:12:36]I (170) boot: Disabling RNG early entropy source...

The screen is totally blank

Snoopey · March 11, 2026, 4:30pm

Okay scratch that! I guess my device wasn’t powered down or something? Just turned it on today after leaving for 24hrs and it booted straight up, played the little song, and is showing all 12 text lines!

Soneliem · April 3, 2026, 3:22am

Your readme mentions support for other displays such as the ED133UT2, but I’m unable to compile it with errors such as Platform not found: 'display.ed133ut2'. Do you have any examples for other displays just use the epdiy v7 without a touchscreen, etc?
