Sonoff TX multiple button switches in multi gang electrical box with Tasmota rules to remote control other devices

Tags: #<Tag:0x00007f73990db0b0> #<Tag:0x00007f73990daca0> #<Tag:0x00007f73990dab10> #<Tag:0x00007f73990da520> #<Tag:0x00007f73990d9e40>


Project: Tasmota configuration of a standard set up relays L1, L2 or L3 connection and some of the buttons to be used as remote control switch to control other MQTT devices remotely with buttons using Rules.
Sonoff TX T0 switches with one, two or three buttons.
(Sonoff names the TX switches 1 gang, 2 gang and 3 gang)
The T0 is the same as T1 T2 and T3 just different country design, color and NO 433mz RF
more info Sonoff TX switches

Objective:
Replacing household single-pole, single-throw Flip switches (SPST)

First location:


Dining room 3 gang electrical box.
Remove three SPST switches
Wires: L 120V, Neutral, Ground, Light, Fan and Patio.

Replacements:
Dining Room Switch #1 (standard wired direct connect to Dining Room Light, dining room Fan and Patio light.) Not a dummy
TX T0 three button switch:

Wire connections
Lin 120V, Nin Neutral

  • button 1 wired to L1 Dining Room Light
  • button 2 wired to L2 Dining room Fan
  • button 3 wired to L3 Patio light.

Dining Room Dummy Switch #2 (dummy switch only wired to Lin and Nin for device power.) Remote control
TX T0 three button switch:


WIre connections
Lin 120V, Nin Neutral, no connections to L1, L2 or L3 relay out.

  • button 1 living room Light no connection L1 relay use MQTT Rules
  • button 2 living room Fan no connection L2 relay use MQTT Rules
  • button 3 kitchen light no connection L3 relay use MQTT Rules

Second location:
Living room 4 gang electrical box.


Remove four SPST switches
Wires: L 120V, Neutral, Ground, living room Light ,living room Fan and Porch light.
Removed forth switch and hot wired that toggled a plug.(now always on)

Replacements:
Living Room Switch #1 (standard wired direct connect to Living Room Light, Living room Fan and Porch light.) Not a dummy
TX T0 three button switch:
Wire connections
Lin 120V, Nin Neutral,

  • button 1 wired to L1 Living Room Light
  • button 2 wired to L2 Living room Fan
  • button 3 wired to L3 Porch light.

Living Room Dummy Switch #2 (dummy switch only wired to Lin and Nin for device power.) Remote control
TX T0 three button switch:
WIre connections
Lin 120V, Nin Neutral, no connections to L1, L2 or L3 relay out.

  • button 1 dining room Light no connection L1 relay use MQTT Rules
  • button 2 dining room Fan no connection L2 relay use MQTT Rules
  • button 3 office light no connection L3 relay use MQTT Rules .

Third location:
Kitchen/pantry 1 gang electrical box.


Remove 1 SPST switch
Wires: L 120V, Neutral, Ground, pantry light.
This switch is in the kitchen for the pantry. button2 to control Kitchen light remotely

Replacements:
Pantry Switch (button1 standard wired direct connect L1 to pantry light,)
button2 Remote control Kitchen light)
TX T0 two button switch:
Wire connections
Lin 120V, Nin Neutral,

  • button 1 wired to L1 pantry light
  • button 2 dining room Light no connection L2 relay use MQTT Rules

Forth Location:
Kitchen 1 gang electrical box.

Remove 1 SPST switch
Wires: L 120V, Neutral, Ground, kitchen light.
This switch is in the kitchen near the door to garage. button2 to control Garage light remotely

Replacements:
Kitchen Switch (button1 standard wired direct connect L1 to kitchen light,)
button2 Remote control garage light)

TX T0 two button switch:
Wire connections


Lin 120V, Nin Neutral,

  • button 1 wired to L1 kitchen light
  • button 2 garage light no connection L2 relay use MQTT Rules


You get the idea how this works. Below is how to set up the rules for the above TX devices.

I also have a 3 button TX in hallway button1 direct connection to hallway light, button2 living room light, button 3 kitchen lights. Then each bedroom has a TX two button to turn on the lights in room and hallway light.

Now on to rules and settings…

Flash your Devices with Tasmota.

Access each device WebUI by entering the IP address into a browser.


Toggle the dummy switches on or off to set full time brightness of buttons.
Go to configure module and select your device type.
Such as
Sonoff T1 3CH (the 3CH means 3 buttons.)

Configure the name of Device and
Entities (BUTTON/SWITCHES/SENSORS)
carefully so you don’t have to rename to many entities in Home Assistant later and or get confused on what is what device or entity.


here I named the device and buttons wrong in tasmota settings and had to override name in Home assistant.

Tasmota configure MQTT Tab
Topic: diningroom_switch

Tasmota configure other Tab


Device name: dining room switch
is the name of the device with the buttons.

Friendly name
Is the name of the Entities (buttons,switches or sensors) assigned to the switch GPIOs

  • Friendly name 1 dining room light
  • Friendly name 2 dining room fan
  • Friendly name 3 patio light

For a switch that will have nothing connected to relay or I call a dummy remote button.

Tasmota configure MQTT Tab
Topic: diningroom_remote_switch

tasmota configure other Tab
Device name: dining room remote switch

Friendly name

  • Friendly name 1 diningroom remote livingroom light
  • Friendly name 2 diningroom remote livingroom fan
  • Friendly name 3 diningroom remote kitchen light
    Or TX switch that will have a mix of live and dummy buttons.

Tasmota configure MQTT Tab
Topic: hallway_switch

tasmota configure other Tab
Device name: hallway switch

Friendly name

  • Friendly name 1 hallway light
  • Friendly name 2 hallway remote dining room light
  • Friendly name 3 `hallway remote kitchen light’

Set your options and commands in the Tasmota console

:skull_and_crossbones:BACK UP config FIRST! :skull_and_crossbones:

SetOption can now be shortened to SO in 8.3.1

Options that we will be using for this tutorial.

Need to change from default or check if correct.

  • SetOption1 ON
  • SetOption73 OFF or ON
  • ButtonTopic 0
  • Setoption13 ON or OFF

To set the options and commands use a backlog
Backlog command allows executing up to 30 consecutive commands with a single command line. Each command is separated by a semicolon (";"). Backlog is a useful feature to avoid numerous restarts when setting up a new device.
Full documentation of commands here https://tasmota.github.io/docs/Commands/

Input your backlog in the webUI console like this for each tasmotized device
Input into the tasmta webUI console this.
Backlog SetOption73 0; ButtonTopic1 0; SetOption1 1; setoption13 1

If you have more that one button then you need to add buttontopic1;buttontopic2 0 and so on.

Information about settings in above backlog.

SO1 1
default is 0
SetOption1 Set button multipress 4 mode to
0 = allow all button actions (default)
1 = restrict to single to penta press and hold actions (i.e., disable inadvertent reset due to long press)

SetOption73 0
default is 0
Enable Buttons decoupling and send multi-press and hold MQTT messages
0 = disable decoupling (default)
1 = enable decoupling

I found I did not need to set this to 1 (ON) after using my rules in dummy switches (nothing connected to relays). But might have to in some other types of devices.

Buttontopic default
Buttontopic1 0, Buttontopic2 0 and Buttontopic3 0 depending on how many buttons your device has.
= set MQTT button topic
0 = disable use of MQTT button topic
1 = set MQTT button topic to device %topic%
2 = reset MQTT button topic to firmware default (MQTT_BUTTON_TOPIC) (default = 0)
If using MQTT to issue this command, if it is published to the device GroupTopic, the command will not be executed.

When Not using multi press or long press rules I like to use
SetOption13 1
default is 0
Allowing immediate action on single button press Disables long press functions also helps with blocking reset of device with a long press. Faster reaction does not wait for finger to be removed.

For auto discovery If using Home assistant without yaml.
SO19 1
default is 0
*Set after you have your device and all entities named, rules and options set so homeassistant has matching info.

Rules for remote buttons to control other MQTT entities/devices.
A little bit of explaining what each command is and what control relays.

Power Control the corresponding power state (1…8) (also restarts PulseTime)
0 / off / false = turn OFF
1 / on / true = turn ON
2 / toggle = if power state is ON switch to OFF and vice versa
3 / blink = toggle power for BlinkCount times each BlinkTime duration (at the end of blink, power state is returned to pre-blink state)
4 / blinkoff = stop blink sequence and return power state to pre-blink state

Example and definition of POWER:
Default rules and options.
A TX0 is a 3 button switch with 3 relays. By default (sonoff T1 3CH template) Button1(GPIO0) is coupled to the first relay(GPIO12)=(POWER1) Touching the button once will toggle the first relay wired to L1 wire connector.
Touching the button once will toggle the corresponding relay.

In Tasmota
Button1 is the first button of three triggering POWER1 the first relay L1 connection of three.
Button2 is the second button of three triggering POWER2 the second relay L2 connection of three.
Button2 is the third button of three triggering POWER3 the second relay L3 connection of three.

Rules and Options:
With the same device template as above you can set some rules and options.
Long press, multi press and behaviors.
Control other MQTT entities with a switch or button press.


Before doing rules *Check what the order of
prefix/topic or topic/prefix
In tasmota device info or console
by typing in the console
Fulltopic

will look like this or reversed
FullTopic”:"%prefix%/%topic%/

kids_bedroom_light/cmnd/
or
cmnd/kids_bedroom_light/

For each TX switch In the tasmota webUI console type in the rules like this

diningroom remote switch

Rule1
ON button1#state DO publish cmnd/livingroom_switch/POWER1 2 ENDON
ON button2#state DO publish cmnd/livingroom_switch/POWER2 2 ENDON
ON button3#state DO publish cmnd/kitchen_switch/POWER1 2 ENDON

Livingroom remote switch

Rule1
ON button1#state DO publish cmnd/diningroom_switch/POWER1 2 ENDON
ON button2#state DO publish cmnd/diningroom_switch/POWER2 2 ENDON
ON button3#state DO publish cmnd/office_switch/POWER1 2 ENDON

Hallway switch

Rule1
ON button2#state DO publish cmnd/diningroom_switch/POWER1 2 ENDON
ON button3#state DO publish cmnd/kitchen_switch/POWER1 2 ENDON

kitchen_switch

Rule1
ON button2#state DO publish cmnd/garage_switch/POWER1 2 ENDON

pantry_switch

rule1
ON button2#state DO publish cmnd/kitchen_switch/POWER1 2 ENDON

Dont forget to turn on each rule after.
type this is console
Rule1 1

Now you can set auto discovery If using Home assistant without yaml.
type this is console
SO19 1

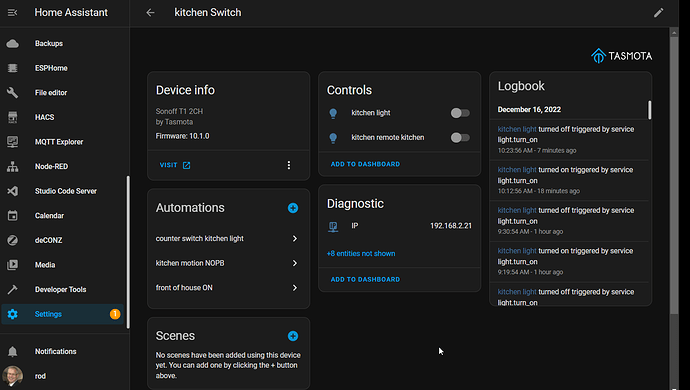

All your switches will now show up in Homeassistant.



Here is my write up on DEVICE BUTTON WITH 4 DIFFERENT ACTIONS
Tasmota Version 8.3.1 button and switch commands.

EDIT May 28 2020 Added to bottom of post:
Sonoff Touch multiple press and group topic

Sonoff TX switch mounting in Multiple gang boxes
I have done blank covers over older single button sonoff touch.


My original plan for this project was to use blank covers and when I get a 3d printer to print custom covers with Icons over buttons.
here is a blank that a carved out squares were buttons are.



She liked the original covers so I just cut down blanks to fill in gaps.
here is a single blank I cut the middle out.

The 4 gang box I was short a TX 3button so for now I just put one swich in and cut down a 3 gange blank to fill in.


when I add another switch for the dummy switch I will cut down the other side and have filler in the middle.
this winter after I get a 3d printer I will design something nicer.

Tasmota gethub help pages

Enjoy,
diyredneck.thestovedoc.com

1 Like

Very thorough :slight_smile:

Do you want to change sonnoff to sonoff all the way through (including the title/subject line?)

1 Like

Thanks
i dont know why my auto correct keeps doing that
if you see anymore screw ups let me know I did this in one sitting and Im not even at the home this is at so I could not check setting. most by memory of what I did.

3 weeks in and they are loving having switches that control everything and accross the room.
The big hit is the hallway switch that controls hallway, kitchen and dining.
And each bedroom switch can shut off hallway.
Oh and she has already written a few automations for shut down front of house, ceiling fan come on when cooler comes on and bedtime routines to work with Alexa voice commands.
